Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: E-link
Chứng nhận: CE,FCC,RoSH
Số mô hình: LNK-WP-IPE101
Tài liệu: E-link LNK-WP-IPE101 Waterp....0.pdf
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1
Giá bán: 55$
chi tiết đóng gói: gói tiêu chuẩn xuất khẩu
Thời gian giao hàng: 2-5 ngày làm việc
Điều khoản thanh toán: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Khả năng cung cấp: 5000 chiếc / THÁNG
Tốc độ truyền dữ liệu: |
10/100/1000 Mbps half/full duplex |
Gán chân PoE: |
1/2 ((+), 3/6 ((-), 4/5 (+), 7/8 (-) |
tầng kết nối: |
Hỗ trợ lớp 3 |
Kích thước: |
195 x 75 x 46 mm |
Gắn: |
Tường kệ |
Tốc độ truyền dữ liệu: |
10/100/1000 Mbps half/full duplex |
Gán chân PoE: |
1/2 ((+), 3/6 ((-), 4/5 (+), 7/8 (-) |
tầng kết nối: |
Hỗ trợ lớp 3 |
Kích thước: |
195 x 75 x 46 mm |
Gắn: |
Tường kệ |

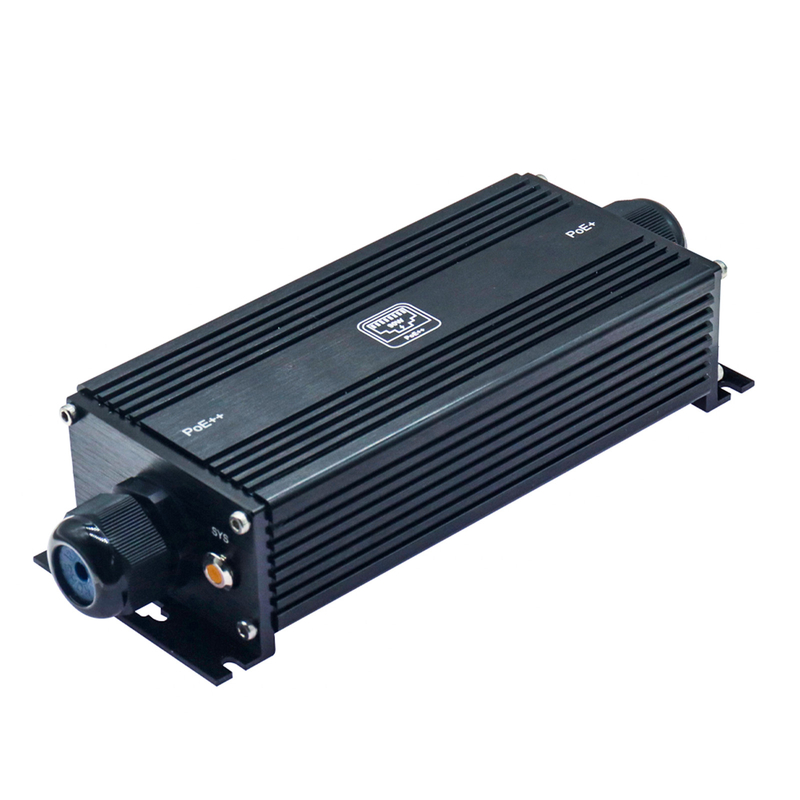

Water-Proof Outdoor Industrial Gigabit PoE Extender
LNK-WP-IPE101 is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 1-out, 90W) that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 50-57V to communication devices.
Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this extender operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh environments. It is ideally suited for security surveillance and network engineering applications.
Water-Proof Outdoor Industrial Gigabit PoE Extender Advantages
► IP67-rated aluminum case
► 10/100/1000Mbps Ethernet Ports
► All ports support IEEE 802.3af/at/bt standards
► 1 x Input, 1 x Output
► Enables 100-meter extension of Ethernet connectivity with PoE
► Wall-mountable design
► Wide operating temperature range: -40°C to 80°C
► No external power cable required for installation
► Plug-and-play functionality
► Supports 2K MAC address table for connecting more
► 10kB jumbo frame support in 1000Mbps full-duplex mode
Technical Indexes
|
|
|
|
PoE Input Port |
1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
|
PoE Output Port |
1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
|
Cascade Connection |
Support 3 grade |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3af/at/bt |
|
PoE Power Supply Type |
Mid-span and End-span |
|
PoE Pin Assignment |
1/2(+), 3/6(-), 4/5 (+), 7/8 (-) |
|
Input Voltage |
IEEE802.3 bt 90W |
|
PoE Output Power |
Maximum 65W |
|
Single Port PoE Output |
Maximum 60W |
|
Switch Property |
|
|
Standards |
IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet |
|
Forwarding Modes |
Store and Forward |
|
Transmission Distance |
Each extender extends by 100m, max 3 grade Cascade, total 400m. |
|
MAC Table |
2K |
|
Switching Capacity |
6Gbps |
|
Packet Forwarding Rate |
4.46Mpps |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Jumbo Frame |
10K bytes |
|
Environment |
|
|
Surge Immunity |
6KV, Standard: IEC |
|
ESD Protection |
6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2 |
|
Protection Level |
IP 67 |
|
Explosion-Proof Rating |
IK10 |
|
Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Operating Humidity |
0~95% (non-condensing) |
|
Physical Parameter |
|
|
Dimensions (WxDxH) |
195 x 75 x 46 mm |
|
Weight |
0.6 kg |
|
Casing |
Aluminum Case |
|
Mounting Options |
Wall-mount |
|
Certifications |
|
|
Certifications |
CE, FCC, RoHS |
Application
Ordering Information
|
Model |
Description |
|
LNK-WP-IPE101 |
IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 1 x Output |
|
Mounting Options |
Wall Mount Bracket is included. |
