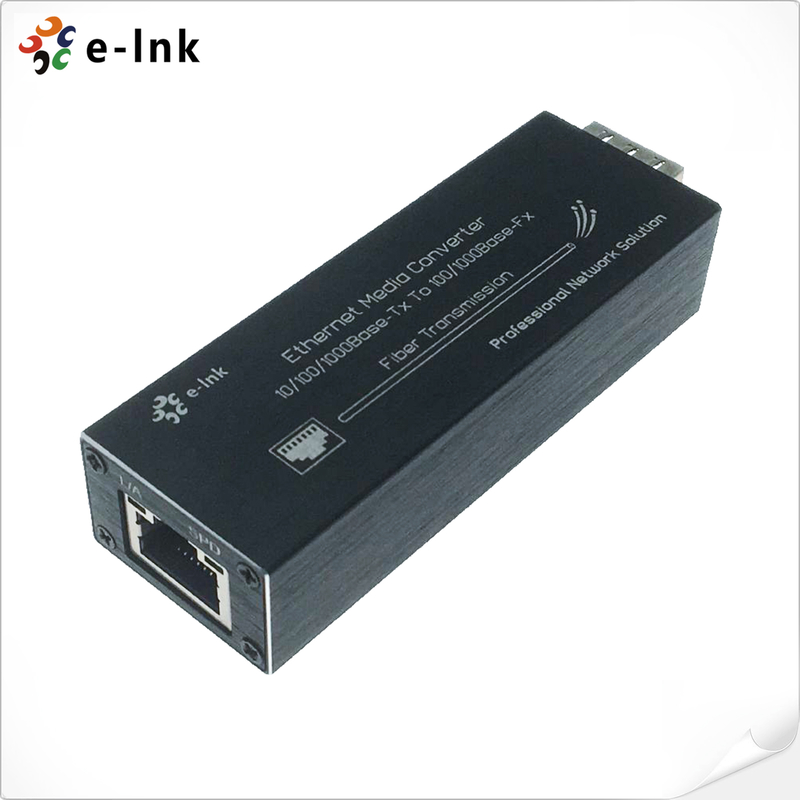

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

Model : LNK-M3011-SFP

Overview

LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching

technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and

IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/

100Base-TX/1000Base-T, and 100/1000Base-X, inter-converting electrical signals of 10Base-T/100

Base-TX/1000Base-T twisted pairs with optical signals of 100/1000Base-SX/LX. It extends the transmission

distance of network from 100m via copper cable to 120km Max via fiber optical cables. It supports

transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.

When plugged into a computer’s USB port, the media converter shuts down automatically when

you turn off the computer, which saves energy. Micro Mini Media Converters are excellent solutions

for fiber-to-the-laptop applications where you need Gigabit fiber connectivity but local power isn’t available.

Features

► Smallest media converters available; tuck the unobtrusively behind a PC

► 10/100 /1000Base-T to 100/1000Base-X SFP

► SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)

► USB-powered for portability, or use 5~15VDC wide range power input

► Ultra compact and weigh less than 2 ounces

► Support 9k jumbo frame

► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost

► Including a Power Supply
