Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: E-link
Số mô hình: LNK-D4K-MM
Tài liệu: E-link LNK-D4K-MM Mini 4Kx2....0.pdf
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1 chiếc
Giá bán: Có thể đàm phán
chi tiết đóng gói: Bao bì các tông
Thời gian giao hàng: 3-12 ngày làm việc
Điều khoản thanh toán: L/C,T/T,Western Union,MoneyGram,Paypal
Khả năng cung cấp: 1000 chiếc / tháng
The warranty: |
1-year warranty |
Dimensions (WxDxH): |
69mm x 42 mm x 18.2 mm |
Operating Temperature: |
32° to +112° F. (0° to +50° C) |
Storage Temperature: |
-40° to +185° F. (-40° to +85° C) |
Fiber Cable: |
50/125μ OM3 Multi-Mode Fiber:≤300m |
EDID Support: |
Support EDID pass-through |
The warranty: |
1-year warranty |
Dimensions (WxDxH): |
69mm x 42 mm x 18.2 mm |
Operating Temperature: |
32° to +112° F. (0° to +50° C) |
Storage Temperature: |
-40° to +185° F. (-40° to +85° C) |
Fiber Cable: |
50/125μ OM3 Multi-Mode Fiber:≤300m |
EDID Support: |
Support EDID pass-through |
Advantages
► Support DVI 1.0 and HDMI v1.4
► Support EDID pass-through.
► Support resolutions up to 3840x2160/30P
► 7.1 channel LPCM, 192 kHz, 24-bit
► Support 3840*2160/60P(YUV 420)
► Plug and Play ,Built-in EQ(Receiver)
► Support 4K/30P@ Single-Link
► Two fiber,2-ways
► Bandwidth up to 10.2 Gbps
► Up to 300m distance by Multimode Fiber
► Support the HDCP 1.4
► Low RFI / EMI
► Support 3D TV pass-through
► Surface-mountable
Overview
E-link Mini 4Kx2K DVI is High-Definition Multimedia Interface recently has become increasingly popular in the application of video and audio transmission system, DVI Fiber Optic Extender uses one fiber without any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows the advantage of high performance and good signal quality as well as low cost.

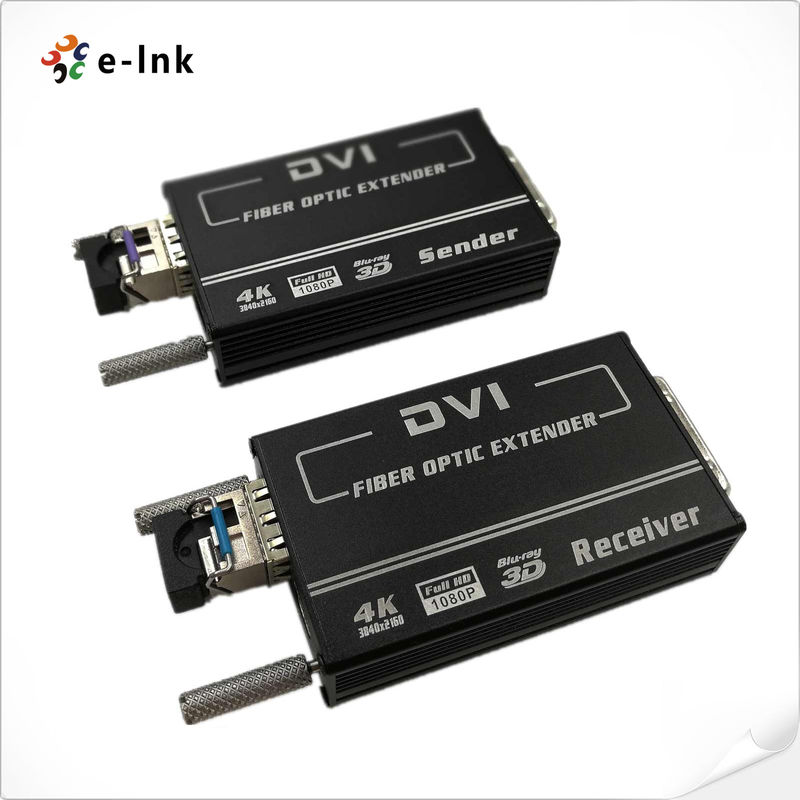

The LNK-D4K-MM series is a high performance 4K Optical Extender that transmits high resolution DVI signals over extreme distances using one fiber. This extender supports HDMI v1.4 signals with resolutions up to 4K (3840*2160/30p) over cable distances up to 300m.
Order Information
Model | Description |
LNK-D4K-MM-S | Mini 4KX2K DVI Fiber Sender Auto EDID,DC5V1A |
LNK-D4K-MM-R | Mini 4KX2K DVI Fiber Receiver Auto EDID,DC5V1A |
