Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: E-link
Chứng nhận: CE, RoHS and FCC
Số mô hình: LNK-MV201
Tài liệu: E-link 2~6-Ch Video Multipl....0.pdf
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1pcs
Giá bán: Có thể đàm phán
chi tiết đóng gói: Công tắc PoE công nghiệp Bao bì carton tiêu chuẩn
Thời gian giao hàng: 7-10 ngày làm việc
Điều khoản thanh toán: L/C,T/T,Western Union,MoneyGram,Paypal
Khả năng cung cấp: 100000 chiếc / tháng
Kích thước: |
158*124*39mm |
Giao diện: |
Khối đầu cuối kép |
Cung cấp điện: |
DC12V/1A |
trở kháng đầu ra: |
75 (không cân bằng) |
Kích thước: |
158*124*39mm |
Giao diện: |
Khối đầu cuối kép |
Cung cấp điện: |
DC12V/1A |
trở kháng đầu ra: |
75 (không cân bằng) |
Product Advantages
· 2-6Channel video signal for camera over 1 coaxial cable
· Designed according to projects with minimum installation volume requirement
· Long distance transmission up to 500m
· Frequency Division Multiplexing, with all video and data transmission real-time and all images high-definition and non-delay.
· Non-debug, adaptive: as long as the transmission distance range, the device will automatically adjust their targets,
· One coaxial cable, no extra cable, which save infrastructure cost,(cost saving 25~30%)
· Maintaining high quality video & anti-interference immunity
· Easy installation with BNC harness
Overview

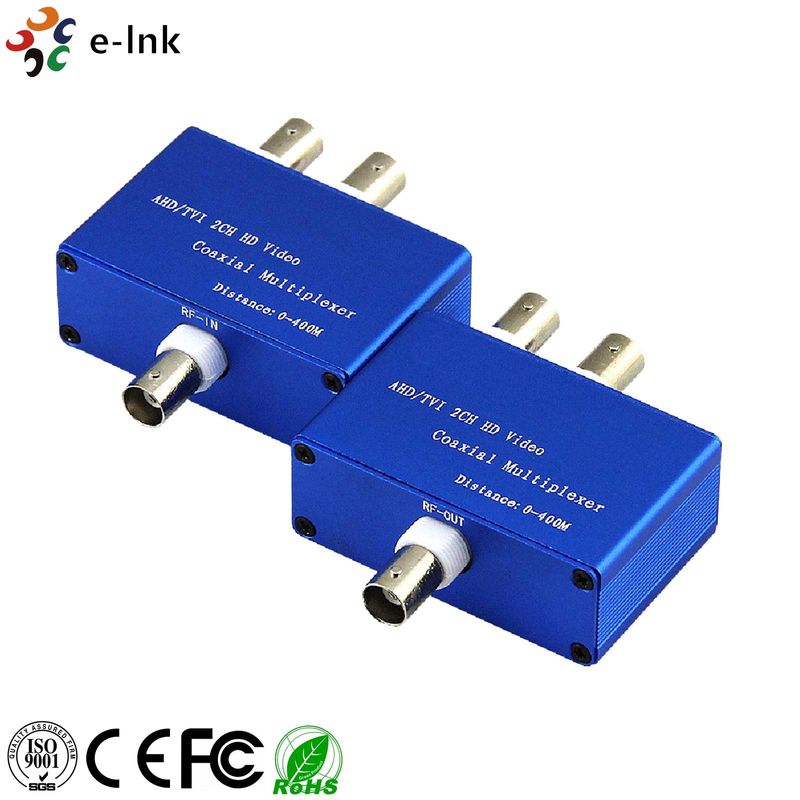

E-link LNK-MV series video multiplexer bound the 2~6-ch video signal of the camera and the control signal of rs485 reverse controller in one coaxial cables transmission. The Video Multiplexer is composed of a Transmitter and a Receiver. From the receiver to the transmitter, it transmits 2~6 channel video signals through one coaxial cable to long distance. Besides, as you don’t need to install extra cable for data signals, you can save your money and time.
Technical Indexes
|
Transmitter |
||||||
|
|
VIDEO 1 |
VIDEO 2 |
VIDEO 3 |
VIDEO 4 |
VIDEO 5 |
VIDEO 6 |
|
Central Frequency |
|
46MHZ |
38MHZ |
30MHZ |
30MHZ |
30MHZ |
|
Signal Output Intensity |
105db |
105db |
103db |
102db |
102db |
102db |
|
Video Input Impedance |
75 Ohm (Unbalanced) |
|||||
|
Video Input Amplitude |
0.8-1.5VPP |
|||||
|
Video Compatible Format |
PAL, NTSC |
|||||
|
Video Interface |
BNC |
|||||
|
2-62-2- |
8MHZ |
|||||
|
Power Supply |
DC12V/1A |
|||||
|
Receiver |
||||||
|
Signal Output Amplitude |
0.9-1.1VPP |
|||||
|
Output Polarity |
Positive |
|||||
|
Output Impedance |
75(Unbalanced) |
|||||
|
Video Interface |
BNC |
|||||
|
Power Supply |
DC12V/1A |
|||||
|
RS485 Output Parameter(Switch with VIDEO 1) |
||||||
|
Quantity of Node Supported |
10 |
|||||
|
Baud Rate |
300-57600bps |
|||||
|
Interface |
Double terminal block |
|||||
|
Dimension |
158*124*39mm |
|||||
|
LNK-MV201 |
2-Ch video converter transmitter and receiver for camera by one coaxial cable |
|
LNK-MV301 |
3-Ch video converter transmitter and receiver for camera by one coaxial cable |
|
LNK-MV401 |
4-Ch video converter transmitter and receiver for camera by one coaxial cable |
|
LNK-MV501 |
5-Ch video converter transmitter and receiver for camera by one coaxial cable |
|
LNK-MV601 |
6-Ch video converter transmitter and receiver for camera by one coaxial cable |
