Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: E-link
Số mô hình: LNK-MDR4K Sê-ri DVI DVI
Tài liệu: E-link LNK-MDR4K Series Min....0.pdf
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1 chiếc
Giá bán: Có thể đàm phán
chi tiết đóng gói: Bao bì các tông
Thời gian giao hàng: 3-12 ngày làm việc
Điều khoản thanh toán: L/C,T/T,Western Union,MoneyGram,Paypal
Khả năng cung cấp: 1000 chiếc / tháng
Connector: |
DVI-D |
Dimensions (WxDxH): |
2.87 x 1.73 x 0.69in (73x44x17mm) |
Operating Humidity: |
5% to 90% RH (non-condensing) |
Fiber type: |
SFP/LC |
Power Supply: |
5V DC (USB-C) |
Power dissipation: |
<5W |
Connector: |
DVI-D |
Dimensions (WxDxH): |
2.87 x 1.73 x 0.69in (73x44x17mm) |
Operating Humidity: |
5% to 90% RH (non-condensing) |
Fiber type: |
SFP/LC |
Power Supply: |
5V DC (USB-C) |
Power dissipation: |
<5W |
Advantages
► DVI 1.0 and HDCP1.2 Support
► Uncompressed transmission, No delay, No losses
► Data rate up to 10.2Gbps
► Transmission distance up to 80km over fiber cable
► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0
► Support Serial RS232 Signal
► Auto EDID, match different kind display device
► Hot-Pluggable, EMI/RFI Resistant
► Miniature form factor for ease of use and installation
► Operating Case Temperature: -10~50°C
Overview

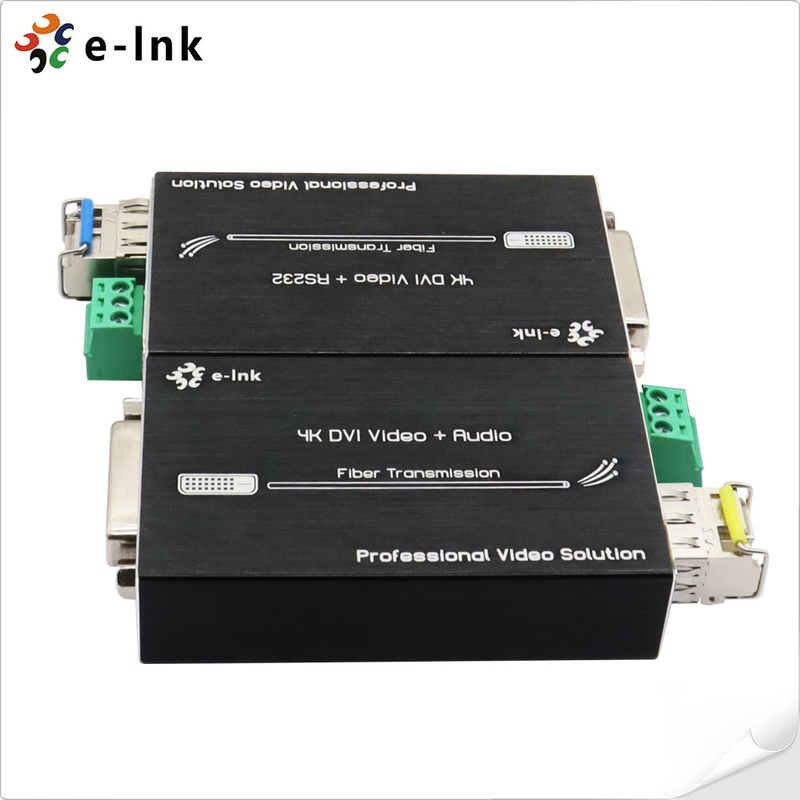

The LNK-MDR4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal and RS232 signal over optical fiber up to distances of 80km at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.
The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an DVI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
Order Information
|
Model |
Description |
|
LNK-MDR4K-MM |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDR4K-S20 |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDR4K-S40 |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDR4K-S80 |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
Application
