Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: E-link
Chứng nhận: CE, RoHS, FCC, ISO9001
Số mô hình: LNK-DEC110-T/R
Tài liệu: E-link LNK-DEC110 Series DI....0.pdf
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1pcs
Giá bán: Có thể đàm phán
chi tiết đóng gói: Công tắc PoE công nghiệp Bao bì carton tiêu chuẩn
Thời gian giao hàng: 7-10 ngày làm việc
Điều khoản thanh toán: L/C,T/T,Western Union,MoneyGram,Paypal
Khả năng cung cấp: 100000 chiếc / tháng
Cân nặng: |
0,5kg |
Dimension (mm): |
95 × 67 × 30 mm |
Công suất tối đa: |
25,5W Max.at Rx (Thiết bị được cấp nguồn), 30W Max.at TX (Thiết bị Sour Power) |
Operating Temperature:: |
-10˚C to 60˚C (14˚F to 140˚F) |
Vỏ: |
Trường hợp nhôm |
Đầu nối: |
Cat5UTP lên đến 100m |
Cân nặng: |
0,5kg |
Dimension (mm): |
95 × 67 × 30 mm |
Công suất tối đa: |
25,5W Max.at Rx (Thiết bị được cấp nguồn), 30W Max.at TX (Thiết bị Sour Power) |
Operating Temperature:: |
-10˚C to 60˚C (14˚F to 140˚F) |
Vỏ: |
Trường hợp nhôm |
Đầu nối: |
Cat5UTP lên đến 100m |
Product Advantages
· Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m (without PoE) or 300m (with PoE)
· Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6
· Input Voltage: DC18V~48V (POE: DC48V).
· Support Power over Coax & Power over Ethernet at same time.
· 2pc BNC design, support to connect Max. 7 channels branch line
· Operation: Use the existing network, easy to install, Plug & Play. Convenient and efficient.
· Code Standard: abide by IEEE802.3 10/100 base-TX Ethernet standard protocol
· Advanced 128-bit AES encrypted transmission and PoE+ power technology
· Excellent Protection: Built-in transient protection; industrial temperature range. Excellent lightning protection and strongly Anti-interference, surge protection.
Overview

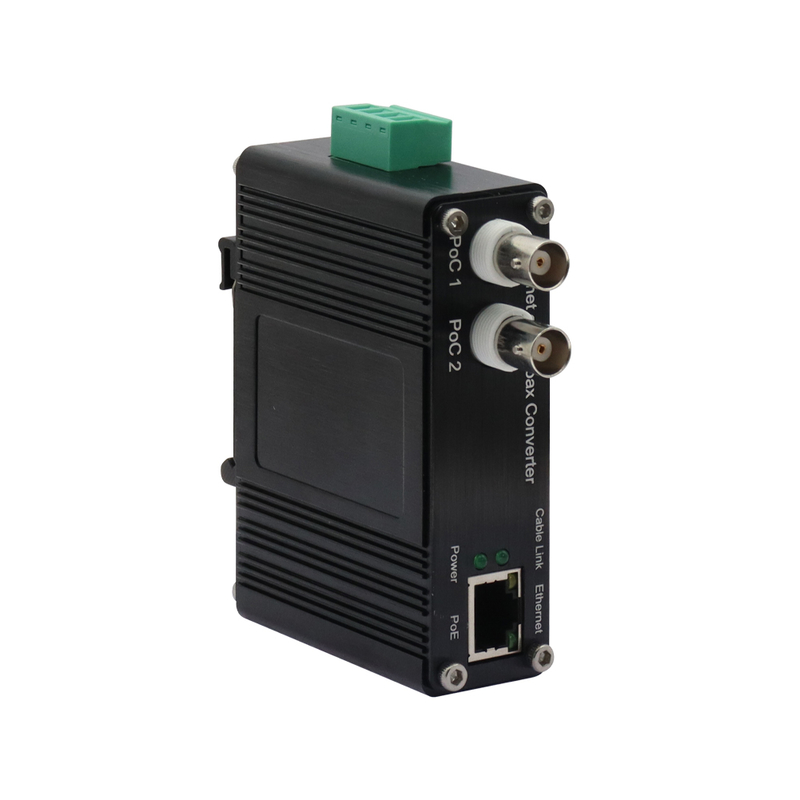

The LNK-DEC110 Series DIN-Rail Ethernet over Coaxial Converter is a new designed Ethernet Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance is up to 1200M(Power: 300M). 2pc BNC design supports to connect 2 channel branch lines at same time.
Technical Indexes
|
Ethernet |
|
|
Standards |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX |
|
|
IEEE802.3af Power Over Ethernet |
|
|
IEEE802.3at Power Over Ethernet |
|
|
Cabling |
10Base-T: Cat 3,4,5, or above |
|
|
100Base-TX: Cat5 or above |
|
Maximum Distance |
Cat5UTP up to 100m |
|
Connector |
1 x RJ45 |
|
Coaxial |
|
|
Cabling |
Coaxial Cable (75 ohm) |
|
Connector |
1 BNC (female) |
|
Distance |
Up to 1200m (no PoE), 300m (with PoE) |
|
Data Rate |
|
|
Downlink (TX to RX) |
90Mbps (Max.) |
|
Uplink (RX to TX) |
90Mbps (Max.) |
|
Technology |
Power Line Communication (PLC) |
|
Protection |
|
|
Reverse Polarity |
Present |
|
Electrical and Mechanical |
|
|
Input Power |
DC18V~48V (PoE: DC48V) |
|
Power Consumption |
8W Max. (PoC not in use) |
|
60W Max. (Poc in use) |
|
|
LED Indicators |
|
|
Power (Power) |
RED (Power On: keep lighting; Power Off: lighting off) |
|
Coax (Cable Link) |
GREEN (Flicker: signal transmission) |
|
Ethernet |
SPD, LINK/ACT, PoE(Transmitter) |
|
PoE |
|
|
Standard |
IEEE802.3af/at |
|
Mode |
B Mode |
|
Port |
RJ45 |
|
Max. Power Per Port |
25.5W max.at RX(Powered Device) |
|
30W Max.at TX(Power Souring Equipment) |
|
|
Mode |
Positive(VCC+): RJ45 Pin 4,5 |
|
Negative(VCC-):RJ45 Pin 7,8 |
|
|
Dimensions (W x D x H) |
95 × 67 × 30 mm |
|
Weight |
0.5kg |
|
Casing |
Aluminum case |
|
Environmental |
|
|
Operation Temperature |
-10˚C to 60˚C (14˚F to 140˚F) |
|
Storage Temperature |
-40˚C to 85˚C (-40˚F to 185˚F) |
|
Relative Humidity |
5% to 90% non-condensing |
|
MTBF |
> 100,000 hrs |
|
Regulatory Approvals |
ISO9001 FCC Part 15 Class A EN55022 Class A Surge Protection RJ45: 1KV BNC: 2KV Power: 500V |
|
Model |
Description |
|
LNK-DEC110-T/R |
DIN-Rail EoC Converter, 1200m transmission distance, including Transmitter and Receiver, not including power supply adapter |
|
LNK-DEC110P-T/R |
DIN-Rail EoC Converter with PoE+, 300m transmission distance, including Transmitter and Receiver, not including power supply adapter |
