Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: E-link
Số mô hình: LNK-H4K101
Tài liệu: E-link LNK-H4K101 4K HDMI F...d).pdf
Điều khoản thanh toán và vận chuyển
Minimum Order Quantity: 1 pcs
Giá bán: Có thể đàm phán
chi tiết đóng gói: Bao bì carton
Thời gian giao hàng: 3-12 ngày làm việc
Điều khoản thanh toán: L/C, T/T, Liên minh phương Tây, Moneygram, PayPal
Supply Ability: 1000 pcs/month
Power dissipation: |
MAX 4W |
Power supply: |
The power adapter: DC 5V/2A |
Interface bandwidth: |
10Gbps |
Wavelength: |
Multi-mode 850nm / Single-mode 1310nm(optional) |
Fiber type: |
Single-mode or Multimode |
Interface: |
SFP model – LC connector |
Power dissipation: |
MAX 4W |
Power supply: |
The power adapter: DC 5V/2A |
Interface bandwidth: |
10Gbps |
Wavelength: |
Multi-mode 850nm / Single-mode 1310nm(optional) |
Fiber type: |
Single-mode or Multimode |
Interface: |
SFP model – LC connector |
Advantages
► Transmits HDMI video signals up to 2km-60km over one fiber optic cable;
► Support video resolution up to 3840*2160@30Hz, 3D signal;
► Compliance with HMDI 1.4; High compatibility;
► Transmitter includes EDID memory to cache the EDID from any display;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
Overview

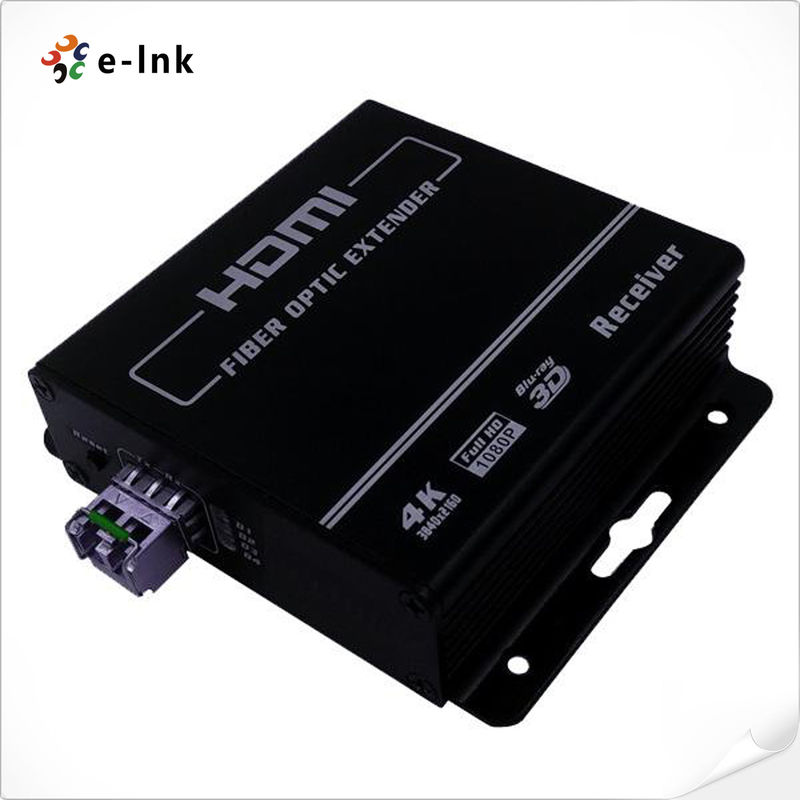

The LNK-H4K101 Fiber optic extender provides long distances extension of HDMI and 3D signals over one fiber optical cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Technical Indexes
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.4; HDCP 1.2 |
|
|
Maximum pixel clock |
340MHz |
|
|
Maximum data rate |
10.2Gbps |
|
|
Resolution range |
Up to 3840*2160@30Hz |
|
|
Connector |
Female HDMI type A |
|
|
Impedance |
100Ω |
|
|
Interface |
SFP model – LC connector |
|
|
Fiber type |
Multi-mode / single-mode (optional) |
|
|
Wavelength |
Multi-mode 850nm / Single-mode 1310nm(optional) |
|
|
Interface bandwidth |
10Gbps |
|
|
Transmission distance |
OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km；maximum 60km |
|
Other |
Power supply |
The power adapter: DC 5V/2A |
|
|
Power dissipation |
Max 4W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
104*89*28mm |
Order Information
|
Item |
Description |
|
LNK-H4K101 |
4K (3840*2160/30P) HDMI Fiber Extender, SFP Port(Excl. SFP), support 10G SFP+ module, including 1 transmitter & 1 receiver, used by pairs |
Application
