Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: E-link
Chứng nhận: CE, FCC, RoHS
Số mô hình: LNK-108M
Tài liệu: E-link LNK-108M Mini 4K HDM....0.pdf
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1 PC
Giá bán: Có thể đàm phán
chi tiết đóng gói: Bao bì carton
Thời gian giao hàng: 3-12 ngày làm việc
Điều khoản thanh toán: L/C, T/T, Liên minh phương Tây, Moneygram, PayPal
Khả năng cung cấp: 1000 PC/tháng
điện áp hoạt động: |
5VDC |
Nhiệt độ hoạt động: |
-20°C đến +70°C |
Nhiệt độ lưu trữ: |
-40 °C đến + 85 °C |
Độ ẩm: |
đến 90% RH (không ngưng tụ) |
Cân nặng: |
0,1 kg / 0,22 lb |
Kích thước (WxDxH): |
2,24 x 0,6 x 0,55 inch (57x16x14mm) |
điện áp hoạt động: |
5VDC |
Nhiệt độ hoạt động: |
-20°C đến +70°C |
Nhiệt độ lưu trữ: |
-40 °C đến + 85 °C |
Độ ẩm: |
đến 90% RH (không ngưng tụ) |
Cân nặng: |
0,1 kg / 0,22 lb |
Kích thước (WxDxH): |
2,24 x 0,6 x 0,55 inch (57x16x14mm) |
Advantages
► Supports HDMI Video up to 4K/30Hz
► No Settings or Adjustments Necessary
► Adopt WDM technology to realize high-definition audio and video transmission through a single OM3 multi-mode optical fiber
► Supports up to 300m distance with OM3, 400m with OM4, 500m with OM5 fiber
► Standard HDMI1.4 Connector
► Integrated USB Connector for Power
► Low power consumption, only the RX module (Display side) needs external power supply
► Hot-Pluggable
► The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference performance
► Uses Small, Reliable LC Optical Connector
Overview

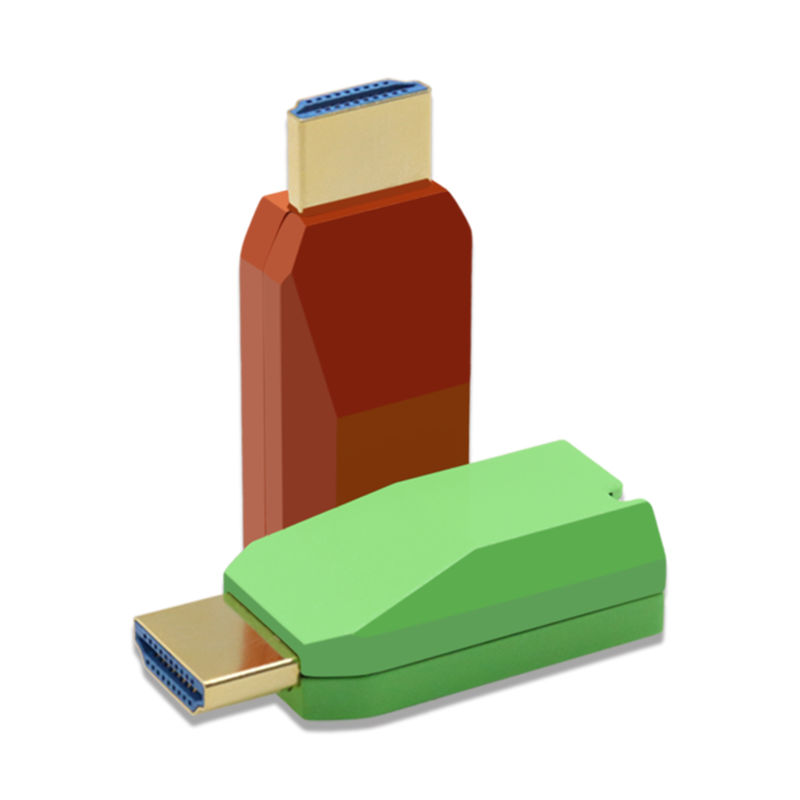

The LNK-108M is a mini 4K/30Hz HDMI over Single-Core MM fiber extender that is pluggable directly into your device. Extend your 4K video source over fiber up to 500m (with OM5 fiber) to your desired display with this incredibly compact set. The set also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.
The 4K HDMI optical fiber extenders are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 1.4 signal over OM5 multimode optical fiber at 850nm, up to distances of 500m, at a resolution of 4Kx2K. LNK-108M-T converts an HDMI signal to a single 10Gb/s serial data stream for transmission over single optical fibers. LNK-108M-R converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
Technical Indexes
|
Type of Extender |
Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender |
|
Input Signals |
HDMI |
|
Signal Support |
HDMI 1.4 HDMI format standard |
|
Video Support |
4K@30Hz/1080p/1080i/720p |
|
Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
Website Specifications |
Color space 444, 420, 400 |
|
Fiber Connector |
1 x LC Connector |
|
Transmission Rate |
10.2Gbps(3.4Gbps/CH) |
|
Transmission Distance |
300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber |
|
Operating Temperature |
-20°C to + 70°C |
|
Storage Temperature |
-40°C to + 85°C |
|
Humidity |
to 90% RH (non-condensing) |
|
Safety Approvals |
CE, RoHS, FCC |
|
Dimension (WxDxH) |
2.24 x 0.6 x 0.55 in (57x16x14mm) |
|
Weight |
0.1 kg / 0.22 lb |
|
Operation Voltage |
5VDC |
|
Operation Current |
TX+RX: 75mA |
|
Power Supply |
Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
|
Note |
The module does not support HDCP and EDID transparent transmission |
Order Information
|
Model |
Description |
|
LNK-108M |
Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input Distance: 300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber |
