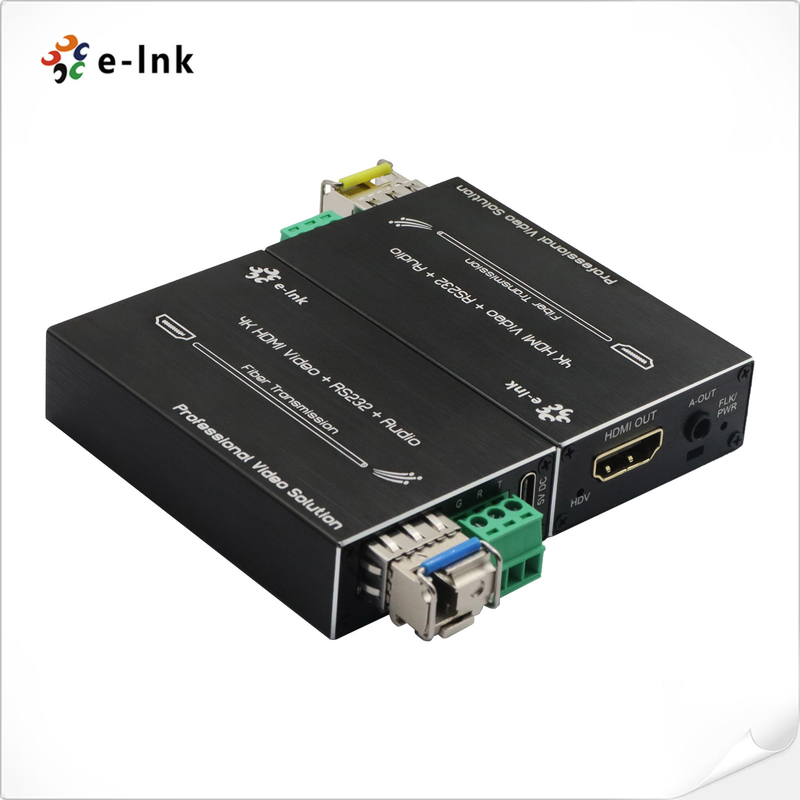

Mini 4K HDMI Fiber Extender with RS232 & External Audio

Chi tiết sản phẩm

Nguồn gốc: Trung Quốc

Hàng hiệu: E-link

Chứng nhận: CE, FCC, RoHS

Số mô hình: Dòng LNK-MHRA4K

Tài liệu: E-link LNK-MHRA4K Series Mi....0.pdf

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu: 1 PC

Giá bán: Có thể đàm phán

chi tiết đóng gói: Bao bì carton

Thời gian giao hàng: 3-12 ngày làm việc

Điều khoản thanh toán: L/C, T/T, Liên minh phương Tây, Moneygram, PayPal

Khả năng cung cấp: 1000 PC/tháng

Nhận được giá tốt nhất
Liên hệ ngay bây giờ
Thông số kỹ thuật
Làm nổi bật:

RS232 Mini 4K HDMI Fiber Extender

,

External Audio HDMI Fiber Extender

,

4K HDMI Fiber Extender

Cung cấp điện:
5V DC, USB Type-C
Nhiệt độ hoạt động:
-10 đến + 50°C
Nhiệt độ lưu trữ:
-20 đến + 80°C
Độ ẩm:
5% đến 90% RH (không ngưng tụ)
Cân nặng:
60g / 0,13 lb
Kích thước (WxDxH):
2,87 x 1,73 x 0,69in (73x44x17mm)
Cung cấp điện:
5V DC, USB Type-C
Nhiệt độ hoạt động:
-10 đến + 50°C
Nhiệt độ lưu trữ:
-20 đến + 80°C
Độ ẩm:
5% đến 90% RH (không ngưng tụ)
Cân nặng:
60g / 0,13 lb
Kích thước (WxDxH):
2,87 x 1,73 x 0,69in (73x44x17mm)
Mô tả
Mini 4K HDMI Fiber Extender with RS232 & External Audio

Mini 4K HDMI Fiber Extender with RS232 & External Audio


Advantages

HDMI 1.4a and HDCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC HPDT Signal Support

► Data rate up to 10.2Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

► Support external stereo audio

► Support Serial RS232 Signal

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► Operating Case Temperature: -10~50°C


Overview

The LNK-MHRA4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal, RS232 signal and stereo audio over optical fiber up to distances of 80km, at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.


Technical Indexes

Type of Extender

Fiber Transmitter for HDMI signal over Optical Fiber Cable

Input Signals

HDMI

Connector

Female HDMI type A

Signal Support

HDMI 1.4a HDMI format standard and HDCP compliant

Video Support

Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz

Audio Support

Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)

Chroma Subsampling

Max 3840*2160@60Hz (4:2:0)

Max 3840*2160@30Hz (4:4:4, 4:2:2)

EDID

Bi-Directional (Forward + Backward) Transmission:

Support Dynamic EDID, Plug & Play, no need to learn

Single-Directional (Forward) Transmission:

Support EDID learning manually

Audio Interface

3.5MM external stereo audio

RS232

3 Pin terminal, Baud rate  38400

Fiber Connector

SFP/LC

Bandwidth

10.2Gbps

Transmission Distance

300m (Over OM3 Fiber)

Up to 80km (Over Single-mode Fiber)

Operating Temperature

-10 to + 50°C

Storage Temperature

-20 to + 80°C

Humidity

5% to 90% RH (non-condensing)

MTBF

100,000 hours

Dimension (WxDxH)

2.87 x 1.73 x 0.69in (73x44x17mm)

Weight

60g / 0.13 lb

Power Supply

5V DC, USB Typ-C

Power dissipation

<5W

Safety Approvals

CE, FCC, Rohs


Order Information

Model

Description

LNK-MHRA4K-MM

Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input

LNK-MHRA4K-S20

Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input

LNK-MHRA4K-S40

Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input

LNK-MHRA4K-S80

Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input



Mini 4K HDMI Fiber Extender with RS232 & External Audio 0



Application

Mini 4K HDMI Fiber Extender with RS232 & External Audio 1
