Chi tiết sản phẩm
Place of Origin: China
Hàng hiệu: E-link
Chứng nhận: CE, FCC, IP67
Model Number: LNK-INJ401-30
Tài liệu: E-link LNK-INJ401-30 Indust....0.pdf
Điều khoản thanh toán và vận chuyển
Minimum Order Quantity: 1pcs
Giá bán: Có thể đàm phán
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Weight: |
0.25Kg |
Dimensions (WxDxH):: |
95 x 70 x 30 mm |
Operating Temperature:: |
-40°C to 80°C (-40°F to 176°F) |
Case: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Power Consumption:: |
36W Max. |
Weight: |
0.25Kg |
Dimensions (WxDxH):: |
95 x 70 x 30 mm |
Operating Temperature:: |
-40°C to 80°C (-40°F to 176°F) |
Case: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Power Consumption:: |
36W Max. |
Product Advantages
► 12~48V DC Power Input
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Support 10/100/1000/2.5G Base-TX
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
► Small Size 95 x 70 x 30 mm
► Aluminum Alloy Metal Case
► Support DIN-rail mounting and wall mounting installation
Overview

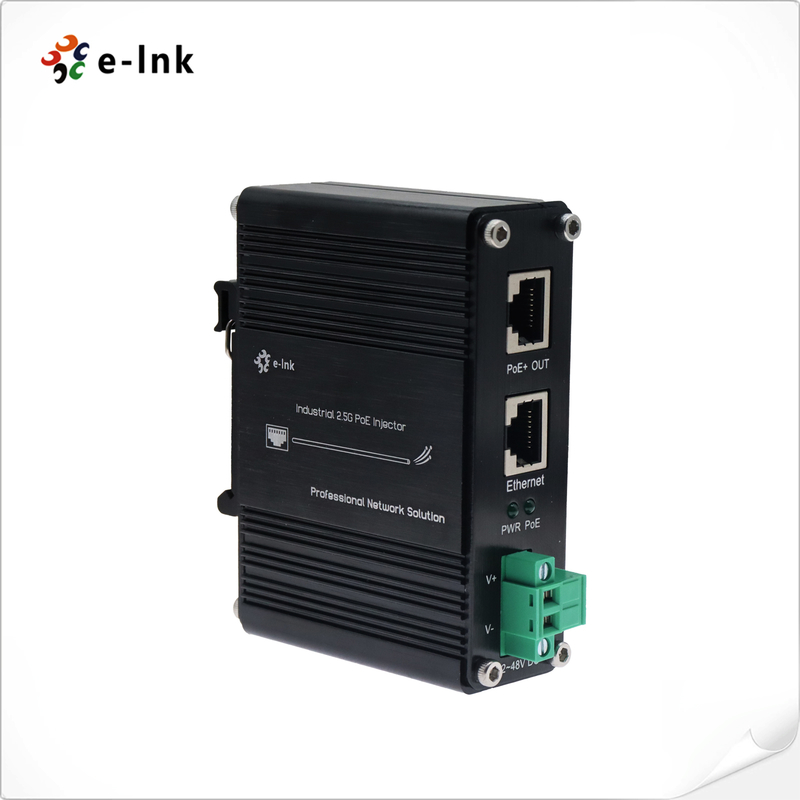

The LNK-INJ401-30 product is a Hardened 2.5G PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000/2.5G Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.
Technical Indexes
|
Standards: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
3,720,000pps (2.5Gbps) |
|
Cabling: |
10/100/1000/2.5G Base-T: Cat6A or above |
|
Maximum Distance: |
Cat6A UTP up to 100m |
|
Connector: |
2x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
36W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at |
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
Ordering Information
|
Model |
Description |
|
LNK-INJ401-30 |
12~48VDC Power Input Industrial 2.5G PoE+ Injector |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
