Chi tiết sản phẩm
Place of Origin: China
Hàng hiệu: E-link
Chứng nhận: CE, FCC, IP67
Model Number: LNK-POE-2GP
Tài liệu: E-link LNK-POE2GP 1000M Pas....0.pdf
Điều khoản thanh toán và vận chuyển
Minimum Order Quantity: 1pcs
Giá bán: Có thể đàm phán
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month

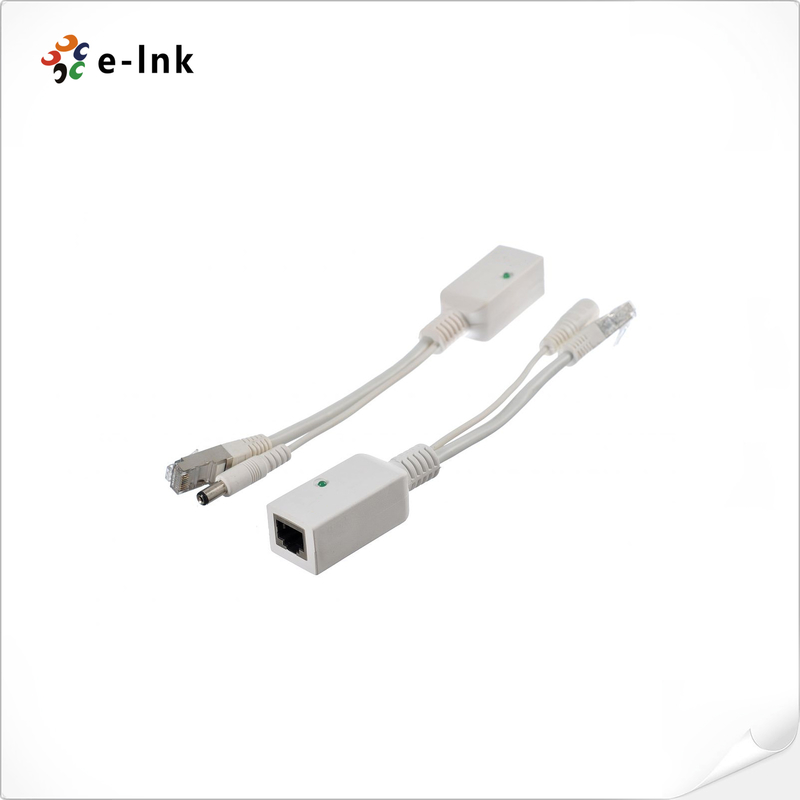

This LNK-POE2GP passive power-over-Ethernet (PoE) gigabit splitter and injector device are compliant with the IEEE 802.3af/at standard. It has 5.5 x 2.1 mm size DC connectors. It will also provide superior operation for 10 Mbps 10BASE-T and 100 Mbps 100BASE-TX in addition to the gigabit (1000 Mbps) 1000BASE-T operations. E-link engineers designed the internal wire construction with solid copper, 24 AWG wire. It utilizes shielded connectors with an internal drain wire. A green LED indicates presence of voltage.
| Standards: | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet |
| Forward Filter Rate: | 14,880pps (10Mbps) 148,800pps (100Mbps) 1,488,000pps (1000Mbps) |
| Input Voltage | 9 to 48VDC +/- 5%, Maximum 56VDC |
| Power Pin Assignment | • Data provide over pairs 1/2(+) and 3/6(-) • Power over spare pairs 4/5(+) and 7/8(-) |
| Ethernet Data Rate | 10/100/1000 Mbps *1000 Mbps - 1 Gigabit |
| Maximum Output Current | 1A |
| Over Current Protection | Yes |
| Ethernet Connectors | Shielded with Internal Drain Wire |
| Internal Wire Size | 24 AWG Solid Copper |
| DC Connector Size | 5.5 x 2.1 mm |
| LED | Green Indicating Voltage Present |
| Housing Material | ABS |
| Dimensions | Length = 8 inches (20.3 cm) |
| Weight: | 96 grams (3.3 ounces) |
| Operating Temperature: | 0°C to 45°C (-32°F to 113°F) |
| Storage Temperature: | -30°C to 70°C (-22°F to 158°F) |
| Relative Humidity: | 5% to 90% non-condensing |
| Model | Description |
|---|---|
| LNK-POE-2GP | Gigabit 10/100/1000 802.3af/at Passive Power-over-Ethernet (PoE) Injector - Splitter Mid-Span Kit with 5.5 mm x 2.1 mm Size DC Connectors |
