Chi tiết sản phẩm
Place of Origin: China
Hàng hiệu: E-link
Chứng nhận: CE, FCC, IP67
Model Number: LNK-PoE-E1
Tài liệu: E-link 1-Port & 4-Port PoE ....0.pdf
Điều khoản thanh toán và vận chuyển
Minimum Order Quantity: 1pcs
Giá bán: Có thể đàm phán
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Network Medium: |
Cat5 or better UTP cables(≤120m) |
Dimensions (WxDxH):: |
75 x 37 x 26.5 mm |
Case: |
Aluminum Case |
Packet Buffer Memory: |
48K Byte |
MAC Address Table: |
2K |
Network Medium: |
Cat5 or better UTP cables(≤120m) |
Dimensions (WxDxH):: |
75 x 37 x 26.5 mm |
Case: |
Aluminum Case |
Packet Buffer Memory: |
48K Byte |
MAC Address Table: |
2K |
Product Advantages
· Comply with IEEE 802.3af Power over Ethernet.
· 10/100M Supported.
· Extend the range of PoE an additional 120 meters.
· Automatically detects and protects PoE equipment from being damaged by incorrect installation
· Plug-and Play no configuration required
· 4-Ports PoE Extender can forward both Ethernet and PoE power for 4 terminal equipment via Cat5 UTP cables
· 1-Ports PoE Extender can forward both Ethernet and PoE power for 1 terminal equipment via Cat5 UTP cables
Overview

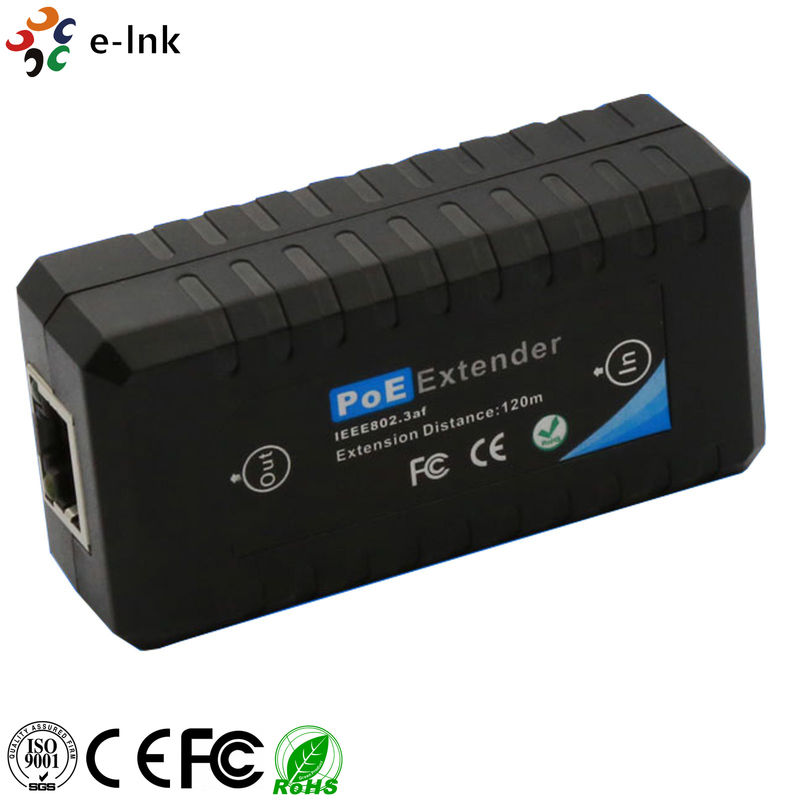

E-link 1-Port PoE Extender has 2 10/100M LAN ports, among them, one for power input, the other for power output. Comply with 10/100BASE-TX,IEEE802.3af(PoE). Power input for single port is 13W. Power output for single port is 12.2W.
4-Ports PoE Extender has 5 10/100M PoE ports, among them, 1 port for power input, and others for power output. Comply with 10/100BASE-TX, IEEE802.3at (power-in) /IEEE802.3af(power-out). The power input is 25.5W in total. Power output for single port is 15.4W( max).
Technical Indexes
Ordering Information
|
Part No |
Description of product |
|
LNK-PoE-E1 |
1-Port PoE Extender: Input 1 RJ45 PoE IEEE802.3AF13W, Output:1 RJ45 12.2W, 120m |
|
LNK-PoE-E4 |
4-Port PoE Extender: Input 1 RJ45 PoE IEEE802.3AT 25.5W, Output:4 RJ45 24W in total, 120m |
