Chi tiết sản phẩm
Place of Origin: China
Hàng hiệu: E-link
Chứng nhận: CE，FCC
Model Number: LNK-PS208
Tài liệu: E-link LNK-PS204 PoE Switch....0.pdf
Điều khoản thanh toán và vận chuyển
Minimum Order Quantity: 1pcs
Giá bán: Có thể đàm phán
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Size: |
135mm×85.6mm×27mm |
Weight: |
315g |
Operating temperature: |
0℃~55℃ |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Out Shell: |
Galvanized Sheet |
Size: |
135mm×85.6mm×27mm |
Weight: |
315g |
Operating temperature: |
0℃~55℃ |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Out Shell: |
Galvanized Sheet |
Product Advantages
► Compliant with IEEE 802.3at PoE+
► Major ports: 2 pcs 100Mbps uplink Ethernet ports, 4 pcs 100Mbps down link Ethernet ports , every port supports MDI/MDIX;
► Special function: One key CCTV mode; 1～4 downlink ports can only communicate with uplink ports;
► Power input: DC48V～57V;
► Transmission Distance : Ethernet port 0～100m;
► Standard: Meet IEEE802.3 ,IEEE802.3u,IEEE802.3 af/at standards, PoE use End-Span, the spare cable can be of other use;
Overview

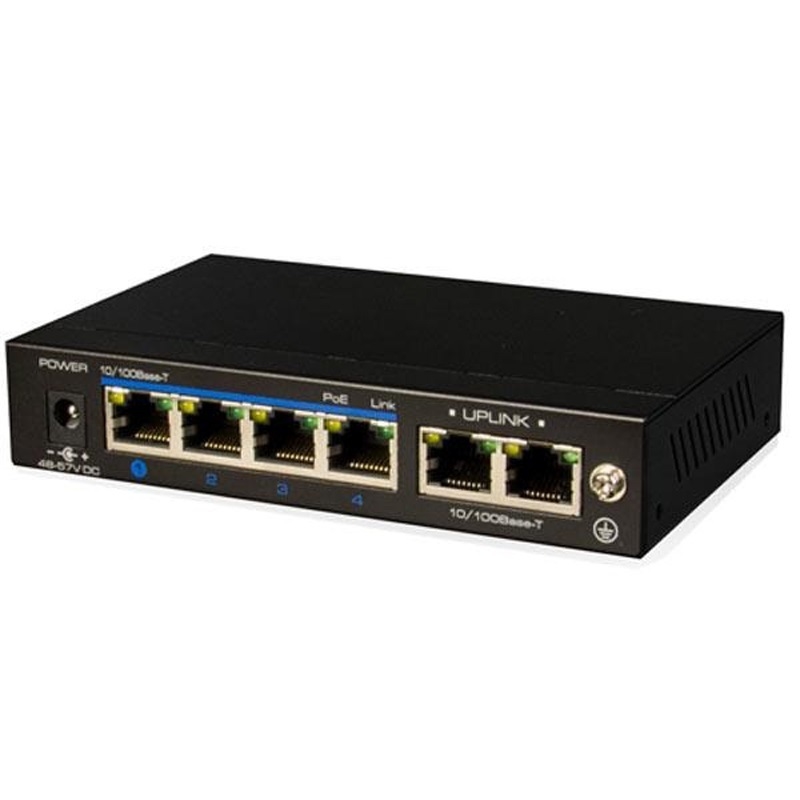

LNK-PS204 Series is a security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and Ethernet security system. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability.
Technical Indexes
|
Item |
Description |
||||
|
Power |
Power Supply |
Power Adaptor |
|||
|
Voltage Range |
Please refer to table a 1 and 2 |
||||
|
Consumption |
＜5W |
||||
|
Ethernet |
Speed |
1-4 port:Default:10/100Mbps; |
|||
|
Transmission Distance |
1-4 port:Default:0～100m; |
||||
|
Network Switch |
Ethenet Standard |
IEEE 802.3/802.3u/802.3af/at |
|||
|
Backplane Bandwidth |
1.0G |
||||
|
Packet Forwarding |
0.75Mbps |
||||
|
Packet Buffer |
768K |
||||
|
MAC |
2K |
||||
|
|
Power Light |
1pcs(Red) |
|||
|
Ethernet Port Light |
2pcs(Yellow&Green) on RJ45,yellow indicates PoE, green indicates Link/Act |
||||
|
Surveillance Module |
1pcs(Green), green indicates CCTV |
||||
|
Protection Level |
Pluse Group |
Level 2 |
|||
|
ESD |
1a Contact Discharge Level 3 |
||||
|
Anti-thunder Level |
Level 3 |
||||
|
Working Environment |
Working Temperature |
0℃~55℃ |
|||
|
Storage Temperature |
-40℃~85℃ |
||||
|
Humidity(Non- |
0~95% |
||||
|
|
Dimension(L*W*H) |
135mm×85.6mm×27mm |
|||
|
Out Shell |
Galvanized Sheet |
||||
|
Color |
Black |
||||
|
Weight |
315g |
||||
|
|
Distance |
100m |
150m |
200m |
250m |
|
Power |
26W |
24W |
23W |
21W |
|
|
Model |
Description |
|
LNK-PS204 |
4-Port PoE+ Switch: 2x10/100M RJ45 Uplink, 4x10/100M PoE+, 250m transmission distance |
