Chi tiết sản phẩm
Place of Origin: China
Hàng hiệu: E-link
Chứng nhận: CE，FCC
Model Number: LNK-DAN-D2
Tài liệu: E-link LNK-DAN-D2 Dante Blu....0.pdf
Điều khoản thanh toán và vận chuyển
Minimum Order Quantity: 1pcs
Giá bán: Có thể đàm phán
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Size: |
115x 34 x 28 mm |
Weight: |
70g |
Operating temperature: |
-5 to +55℃ |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Power: |
802.3af PoE |
Size: |
115x 34 x 28 mm |
Weight: |
70g |
Operating temperature: |
-5 to +55℃ |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Power: |
802.3af PoE |
Product Advantages
► Plug and play.
► 24-bit audio support.
► 2x1 Audio Channels
► Support power via IEEE802.3af PoE Injector
► Bluetooth 5.0
► Maximum transmission distance 20m
Overview

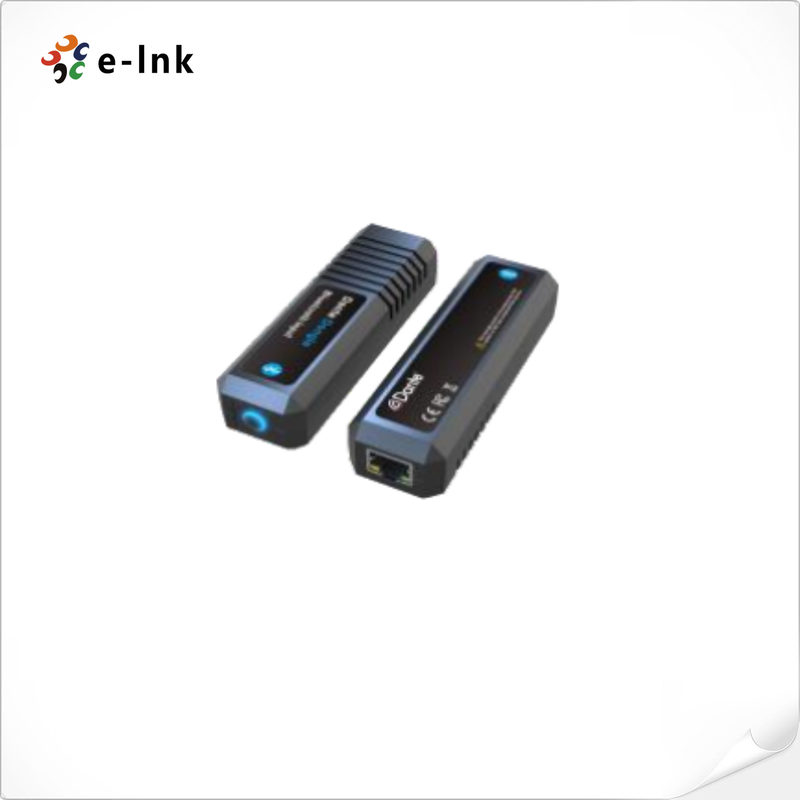

The LNK-DAN-D2 Dante Bluetooth Dongle can connects to your Dante network and supports 2X1 channels of wireless audio, allowing PC and mobile device to playout and receive audio with your Dante devices using a Bluetooth connection.
Technical Indexes
|
Port |
|
|
RJ45 Port |
Network communication port. Green light on indicates system is ready Yellow light flash indicates link/data traffic. When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device. |
|
Bluetooth |
1 x backlit key, blue backlight, for Bluetooth pairing. |
|
Pairing Process |
After the device is powered on, press the pairing button, the blue backlight of the button flashes quickly, indicating that the device is in the state of being connected. After the Bluetooth device is successfully paired with it, the blue backlight of the button is always on If the Bluetooth is not connected to any device within one minute, the blue backlight is off, the Bluetooth is turned off, and the pairing button needs to be pressed again. In the power-on state, press and hold the button for more than 5 seconds, the backlight will turn off. At this time, the pairing will be reset, and the Bluetooth will return to the initial state. |
|
Dante |
|
|
Power |
802.3af PoE |
|
Sample Rate |
48 kHz |
|
Dante Device Latency |
1,2 or 5ms (configurable using Dante Controller) |
|
Bit Depth |
24 |
|
Type |
Bluetooth 2X1 |
|
Control |
|
|
Control Part |
(1) Bluetooth |
|
General |
|
|
Operation Temperature |
-5 to +55℃ |
|
Storage Temperature |
-25 to +70℃ |
|
Power Consumption |
1.9W(Max) |
|
Dimension (W*H*D) |
115x 34 x 28 mm |
|
Cable length |
20cm |
|
Net Weight |
70g |
|
Model |
Description |
|
LNK-DAN-D2 |
Dante Bluetooth Dongle, Bluetooth 5.0, 20 meter transmission distance |
