Chi tiết sản phẩm
Place of Origin: China
Hàng hiệu: E-link
Chứng nhận: CE，FCC
Model Number: LNK-DAN-D5
Tài liệu: E-link LNK-DAN-D5 Dante 2Ch....0.pdf
Điều khoản thanh toán và vận chuyển
Minimum Order Quantity: 1pcs
Giá bán: Có thể đàm phán
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Dimension (W*H*D): |
114 x 30 x 28 mm |
Weight: |
145g |
Operating temperature: |
-5 to +55℃ |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Power Consumption: |
2.6W(Max) |
THD: |
<0.01% @+4dBu |
Dimension (W*H*D): |
114 x 30 x 28 mm |
Weight: |
145g |
Operating temperature: |
-5 to +55℃ |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Power Consumption: |
2.6W(Max) |
THD: |
<0.01% @+4dBu |
Product Advantages
► Plug and play.
► 24-bit audio support
► 2x0 Audio Channels
► Support power via PoE Injector (IEEE802.3af)
Overview

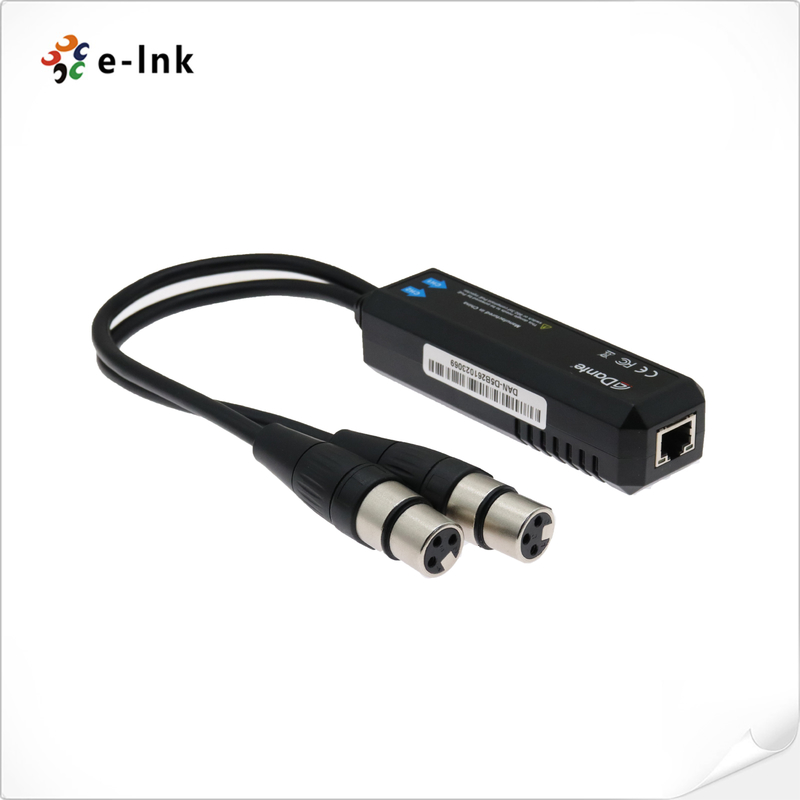

The LNK-DAN-D5 2Ch Analog Input Dongle Converter can connects to your Dante network and supports Analog 2X0 channels audio, allowing receive analog audio signal, convert the analog signal to digital signal and transmit through Dante network.
Technical Indexes
|
Port |
|
|
RJ45 Port |
Network communication port. Green light on indicates system is ready Yellow light flash indicates link/data traffic. When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device. |
|
XLR Port |
2 x XLR port, connect input device |
|
Audio |
|
|
Max signal level |
+24 dBu |
|
Frequency Response |
20Hz to 20kHz(-/+0.5dB) |
|
Impedance |
20k Ohm balanced, 10k Ohm unbalanced |
|
Dynamic Range |
>100 dB |
|
Signal to Noise Ratio |
>100 dB |
|
THD |
<0.01% @+4dBu |
|
Dante |
|
|
Sample Rate |
44.1kHz, 48kHz, 96kHz |
|
Bit Depth |
24 |
|
Dante Device latency |
1,2 or 5ms (configurable using Dante Controller) |
|
Type |
Analog 2x0 |
|
General |
|
|
Operation Temperature |
-5 to +55℃ (+23° to +131°F) |
|
Storage Temperature |
-25 to +70℃ (-13° to +158°F) |
|
Power |
802.3af PoE |
|
Power Consumption |
3.15W(Max) |
|
Dimension (W*H*D) |
114 x 30 x 28 mm |
|
Cable length |
30cm |
|
Net Weight |
145g |
|
Model |
Description |
|
LNK-DAN-D5 |
Dante 2Ch Analog Input Dongle Converter |
