Chi tiết sản phẩm
Place of Origin: China
Hàng hiệu: E-link
Chứng nhận: ISO9001, CE, FCC, RoHS
Model Number: LNK-SPD2400G
Tài liệu: E-link LNK-SPD2400G 24-port....0.pdf
Điều khoản thanh toán và vận chuyển
Minimum Order Quantity: 1pcs
Giá bán: Có thể đàm phán
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Working Temperature: |
-20℃~70℃ |
Working Humidity: |
5%~95 % (no condensation) |
MTBF: |
＞30000h |
Insulation Resistance: |
≥0.4MΩ |
Bandwidth: |
20Hz-20KHz |
Insertion Loss: |
≤0.2dB |
Working Temperature: |
-20℃~70℃ |
Working Humidity: |
5%~95 % (no condensation) |
MTBF: |
＞30000h |
Insulation Resistance: |
≥0.4MΩ |
Bandwidth: |
20Hz-20KHz |
Insertion Loss: |
≤0.2dB |

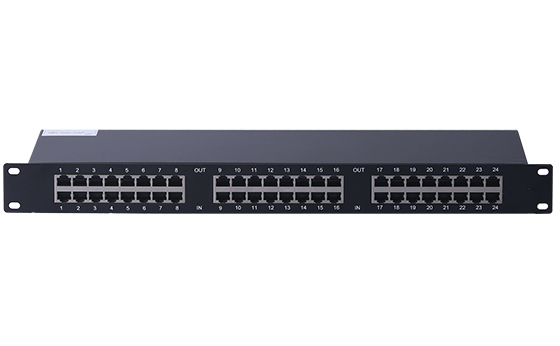

24-ports 10/100/1000M Ethernet Network Surge Protector
Product Advantages
► 220VAC Control Line, RJ45 port;
► Multi-level protection circuit, residual depression;
► Four wire protection: 1.2.3.6 line
► High transmission band, fast response, low insertion loss;
► Exquisite appearance, small size, easy to stall;
► Ground through a special process to avoid signal interference.
► It has huge flow capacity, sensitive reaction
► Excellent performance, and low-loss insert
Overview
This product is applicable to the lightning and electric surge protection of the Ethernet signal circuit, control wiring and power circuit of monitor camera. It can combine the above mentioned lightning protection function into one. Its housing adopts integrated iron structure with small volume and ultra low residual pressure output.
Technical Indexes
|
Item |
Specification |
||
|
Model |
LNK-SPD2400G |
||
|
Ethernet |
Continuous Operating Voltage |
5V |
|
|
Maximum Working Voltage |
6V |
||
|
Nominal Discharging Current In (8/20us) |
2KA |
||
|
Maximum Discharging Current Max (8/20us) |
3KA |
||
|
Limit Voltage Up |
1~2 |
＜20V |
|
|
10/700us |
3~6 |
＜20V |
|
|
Insulation Resistance |
≥0.4MΩ |
||
|
Insertion Loss |
≤0.2dB |
||
|
Transmission Rate |
10/100/1000Mbps |
||
|
Response Time |
≤0.5ns |
||
|
Protection Pins |
1, 2, 3, 6 |
||
|
Protection lines |
24 Channels |
||
|
Environmental |
Operating Temperature |
-20℃~70℃ |
|
|
Storage Temperature |
-20℃~95℃ |
||
|
Relative Humidity |
5% to 95% non-condensing |
||
|
Stability |
MTBF |
＞30000h |
|
|
Model |
Description |
|
LNK-SPD2400G |
24-ports 10/100/1000M Ethernet Network Surge Protector |
