Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: E-link
Chứng nhận: CE, FCC, RoHS
Số mô hình: LNK-MH4K-MM
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1pcs
Giá bán: Negotiated
chi tiết đóng gói: Gói xuất tiêu chuẩn
Thời gian giao hàng: 5-12 ngày làm việc
Điều khoản thanh toán: T/T, PayPal
Khả năng cung cấp: 1000pcs/miệng
Nhiệt độ hoạt động:: |
-10 đến + 60 ° C |
Nhiệt độ lưu trữ:: |
-20 đến + 85°C |
Độ ẩm: |
5% đến 90% rh (không liên quan) |
Đầu nối sợi: |
SFP/LC |
Kích thước (WXDXH):: |
3.07 x 1.06 x 0.69in (78x27x17mm) |
Cân nặng:: |
50g / 0,11 lb |
Nhiệt độ hoạt động:: |
-10 đến + 60 ° C |
Nhiệt độ lưu trữ:: |
-20 đến + 85°C |
Độ ẩm: |
5% đến 90% rh (không liên quan) |
Đầu nối sợi: |
SFP/LC |
Kích thước (WXDXH):: |
3.07 x 1.06 x 0.69in (78x27x17mm) |
Cân nặng:: |
50g / 0,11 lb |
Micro Mini 4K HDMI Fiber Extender Advantage
► HDMI 1.4a and HCCP1.2 Support
► Uncompressed transmission, No delay, No losses
► DDC CEC HPD Signal Support
► Data rate up to 10.3Gbps
► Transmit up to 80km over fiber cable
► Supports all modes up to 4K*2K@30Hz Resolution
► USB-C Connector for Power Input
► Hot-Pluggable, EMI/RFI Resistant
► Miniature form factor for ease of use and installation
► Operating Case Temperature: -10~60°C
Micro Mini 4K HDMI Fiber Extender Overview
The LNK-MH4K Series 4K HDMI Fiber Extender are designed to support transmission
of an uncompressed lossless HDMI 1.4a signal over optical fiber up to distances of 80
km, at a resolution of 4Kx2K.
The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for
transmission over optical fiber. The Receiver converts the serial data back to an HDMI
signal. The transceivers are RoHS compliant and lead-free per requirements in Europe
and China. This product is ideal for large-screen display, conferencing systems and
home entertainment and so on. The device has the ability of anti-interference, to ensure
the stability of the signal.
Micro Mini 4K HDMI Fiber Extender Technical Indexes
|
Type of Extender |
Fiber Transmitter for HDMI signal over Optical Fiber Cable |
|
Input Signals |
HDMI |
|
Connector |
Female HDMI type A |
|
Signal Support |
HDMI 1.4a HDMI format standard and HDCP compliant |
|
Video Support |
1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
|
Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
Chroma Subsampling |
Color space 420, 400 |
|
Dynamic EDID |
Plug & Play, no need to learn |
|
Fiber Connector |
SFP/LC |
|
Bandwidth |
10.3Gbps |
|
Transmission Distance |
300m (Over OM3 Fiber) |
|
|
Up to 80km (Over Single-mode Fiber) |
|
Operating Temperature |
-10 to + 60°C |
|
Storage Temperature |
-20 to + 85°C |
|
Humidity |
5% to 90% RH (non-condensing) |
|
MTBF |
100,000 hours |
|
Dimension (WxDxH) |
3.07 x 1.06 x 0.69in (78x27x17mm) |
|
Weight |
50g / 0.11 lb |
Micro Mini 4K HDMI Fiber Extender Ordering Information
|
Model |
Description |
|
LNK-MH4K-MM |
Micro Mini HDMI Fiber Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, USB Power Input |
|
LNK-MH4K-S20 |
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, USB Power Input |
|
LNK-MH4K-S40 |
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, USB Power Input |
|
LNK-MH4K-80 |
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input |
|
LNK-MH4K-S80 |
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input |

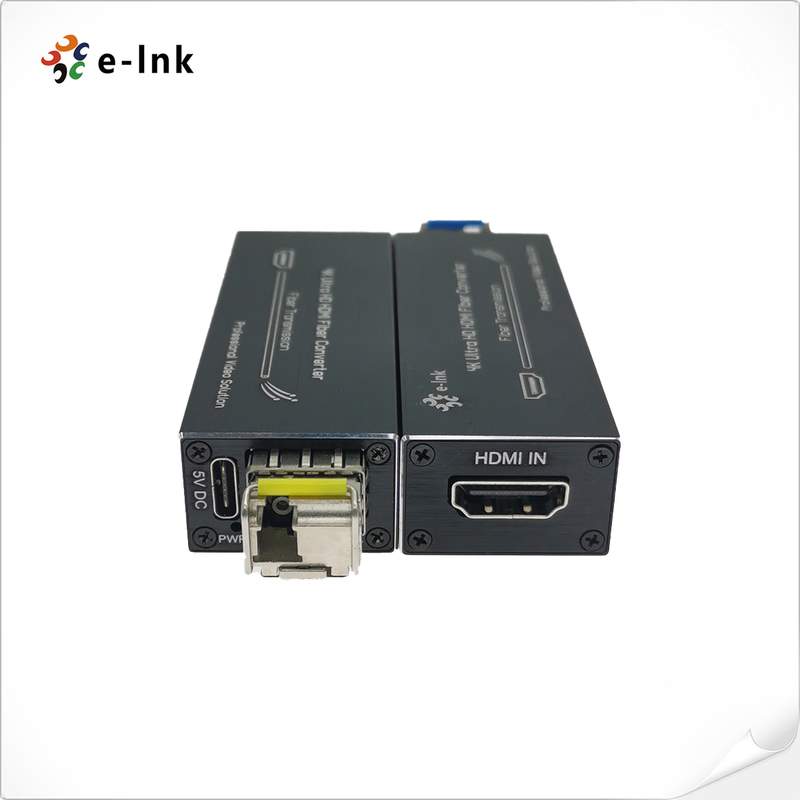

Micro Mini 4K HDMI Fiber Extender Picture
Micro Mini 4K HDMI Fiber Extender Application
