Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: E-link
Chứng nhận: CE,FCC,RoHs
Số mô hình: LNK-POE300
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1pc
Giá bán: USD 15~19/PCS
chi tiết đóng gói: Gói xuất tiêu chuẩn bộ điều hợp POE
Thời gian giao hàng: 3-6 ngày làm việc
Điều khoản thanh toán: L/C, D/A, D/P, T/T, Western Union, Moneygram
Khả năng cung cấp: 5000pcs mỗi tháng
Tốc độ dữ liệu: |
10/100/1000mbps |
Kích thước: |
145 x 58 x 39mm |
Độ ẩm: |
5% - 90% RH |
Điện áp đầu vào: |
100-240V AC@50/60Hz |
Công suất đầu ra: |
30W |
Điện áp đầu ra: |
48V DC |
Tốc độ dữ liệu: |
10/100/1000mbps |
Kích thước: |
145 x 58 x 39mm |
Độ ẩm: |
5% - 90% RH |
Điện áp đầu vào: |
100-240V AC@50/60Hz |
Công suất đầu ra: |
30W |
Điện áp đầu ra: |
48V DC |
Gigabit PoE Injector IEEE802.3af 15.4W
► Up to 15.4W of PoE Power
► Compliant with IEEE802.3af Standard
► Support 10/100/1000Base-T
► Compliant with Limited Power Source (LPS)
► High Efficiency > 85%
► Low No Load Power Consumption < 0.5W
► Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)
► Over-Voltage/Load/Temperature & Short Circuit protections
► Plug & Play, no configuration required
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non-standard Ethernet Terminals
►Injects 48V DC through a CAT 5 cable, use all 2 pairs into remote devices such as wireless AP,
IP phone, web camera and other functions
Gigabit PoE Injector Overview
LNK-POE300 15.4W-48V Gigabit POE Injector is a long-distance driving, fast network performing,
strong PoE Output IEEE802.3af certified midspan. It is a single port indoor PoE injector that can
provide up to 15.4W based on the IEEE 802.3af standard.
The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras,
IP videophones, thin clients and other power Ethernet end terminals with 15.4W of power.
The solutions support IEEE 802.3af powered devices and are also backward compatible and
safe to use with any IEEE 802.3af terminal. With plug and-play installation, they are easy and
cost effective to implement leveraging existing Ethernet infrastructure while at the same time
providing the assurance of a future proof network.
Gigabit PoE Injector Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T: Cat5 or above |
| Maximum Distance: | IEEE802.3af PoE (15.4W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |

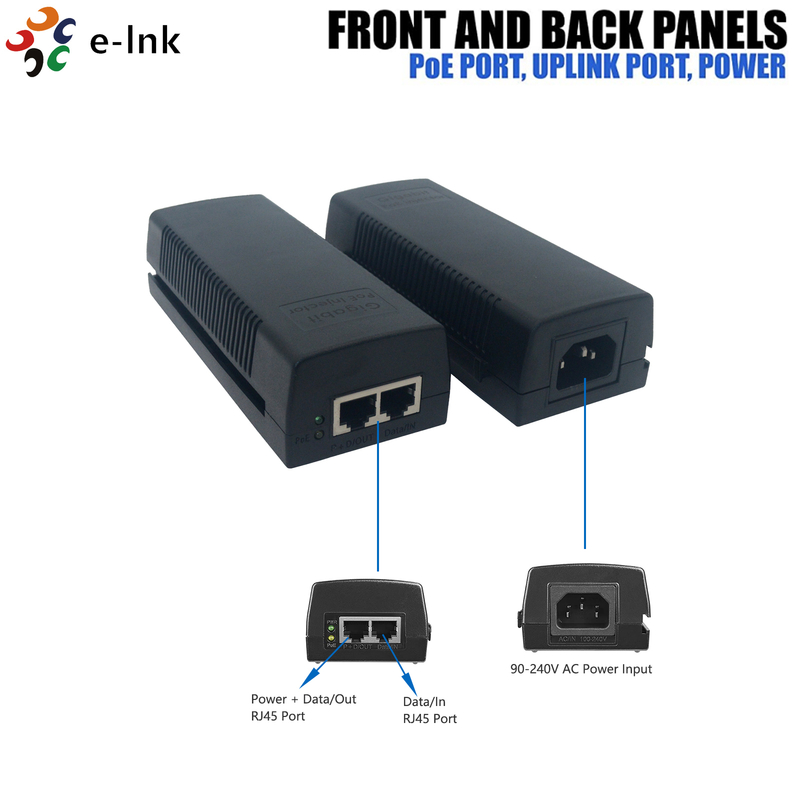

| Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13 |
| Environmental | |
| Operating Temperature: | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature: | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Voltage Range: | 100-240V AC @50/60Hz. |
| Output Voltage: | DC 48V |
| Power Consumption: | 15.4 watts max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3af |
| Port: | RJ45 |
| Pin Assignment |
Data provide over pairs 1/2(+) and 3/6(-) Power over spare pairs 4/5(+) and 7/8(-) |
| PoE Power Output | DC 48V/15.4-watt PoE via 2-pairs |
| LED Indicators | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (W×D×H): | 145 x 58 x 39mm |
| Weight: | 0.25Kg |
| Casing: | Plastic Case |
| Mounting Options: | Desktop |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500W | |
| ESD: 4KV/8KV | |
Gigabit PoE Injector Application
Gigabit PoE Injector Ordering Information
| Model | Description |
| LNK-POE300 | PoE Injector with Power Cord: 10/100/1000Mbps, IEEE 802.3af 15.4W |
