Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: E-link
Số mô hình: LNK-FS1610
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1 PC
Giá bán: Có thể đàm phán
chi tiết đóng gói: Bao bì carton
Thời gian giao hàng: 3-12 ngày làm việc
Điều khoản thanh toán: L/C, T/T, Liên minh phương Tây, Moneygram, PayPal
Khả năng cung cấp: 1000 PC/tháng
Nhiệt độ làm việc: |
0 ℃～ 40 |
Nhiệt độ lưu trữ: |
-20 ~ 70 |
Độ ẩm: |
10% ~ 90% không ngưng tụ |
Kích thước: |
440x230x44mm (khung tiêu chuẩn 1U19 inch) |
Quyền lực: |
Đầu vào: 90-264VAC, 50-60Hz; Đầu ra: 5V/12A |
Tiêu thụ năng lượng: |
Tiêu thụ năng lượng: 60W |
Nhiệt độ làm việc: |
0 ℃～ 40 |
Nhiệt độ lưu trữ: |
-20 ~ 70 |
Độ ẩm: |
10% ~ 90% không ngưng tụ |
Kích thước: |
440x230x44mm (khung tiêu chuẩn 1U19 inch) |
Quyền lực: |
Đầu vào: 90-264VAC, 50-60Hz; Đầu ra: 5V/12A |
Tiêu thụ năng lượng: |
Tiêu thụ năng lượng: 60W |
Advantages
► Support for 802.1x authentication, and to provide users with access to authentication
► Wire-speed filtering - Storage - forward mode, providing a true non-blocking switching structure
► Support the function of port mirroring, port gathering, port speed limit
► Support the port-based VLAN and IEEE802.1Q based on VLAN
► Storm suppression: can be set with the Broadcast, multicast, DLF traffic
► Spanning Tree: Support the standard of IEEE 802.1d and IEEE 802.1w (Rapid Spanning Tree Protocol) and IEEE802.1s (Multiple Spanning Tree Protocol)
Overview

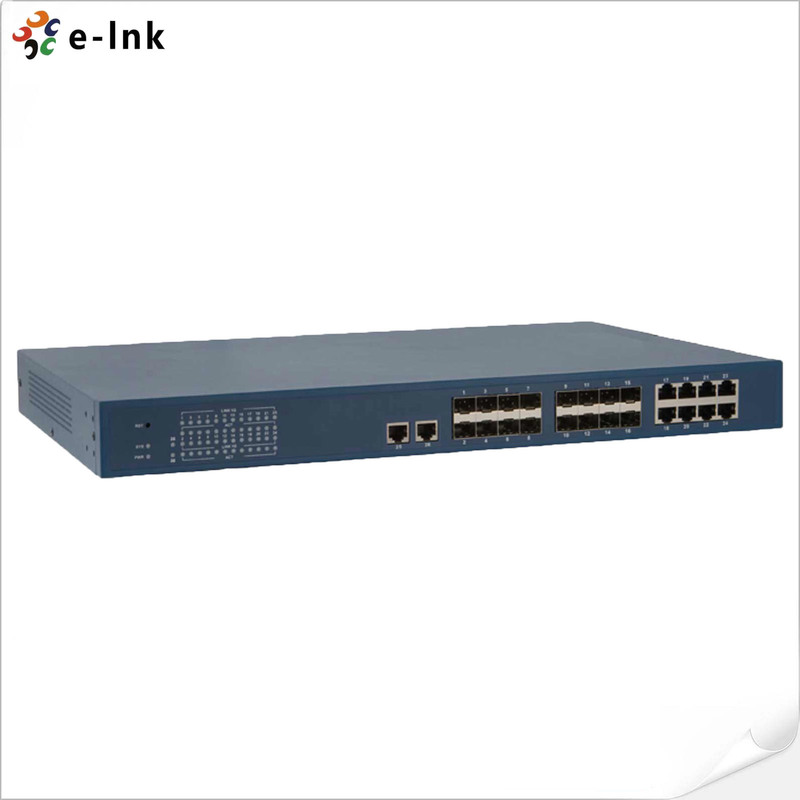

16+10 Management Gigabit fiber network switch is a second, fourth layer gigabit managed switch, provides 10x 10/100M/1000M RJ45 ports and 16x1000M SFP optical ports. The hard ware supports wire-speed switching of the second layer.
Users can set all kinds of functions of the switch through the Ethernet port in WEB. Built-in ARP and DOS defense system can effectively defense the ARP, DOS and various virus attack, moreover, It is also equipped with many powerful features: a comprehensive QoS, spanning tree, a storm suppression, Bandwidth Control, IGMP Snooping, ACL access control, DHCP snooping etc. Very suitable for small and medium-sized enterprises, campus network, and the metropolitan area network aggregation applications.
Technical Indexes
|
Product Type |
16+10 Management gigabit fiber network switches |
|
Support agreement |
IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak |
|
Maximum frame length |
9216B |
|
Ports |
16 1000M SFP optical ports and 10 10/100/1000M RJ45 ports |
|
Network Media |
1000Base-LX: using long wavelength laser (1310nm) over multimode and single mode fiber, multimode fiber the maximum distance is 550m, single mode 10-24km. |
|
1000Base-SX: 62.5μm multimode fiber the maximum transmission distance of 275m, 50μm multimode fiber using the maximum transmission distance of 550 meters. |
|
|
10Base-T: 3 classes or more than 3 kinds UTP; (maximum transmission distance of 200m), 14880P / S |
|
|
100Base-TX: 5 Category UTP; (maximum transmission distance of 100m), 148800P / S |
|
|
1000Base-T: CAT-5E UTP or Category 6 UTP; (maximum transmission distance of 100m), 1488000P / S |
|
|
VLAN Address Table |
4K |
|
MAC address table |
8K |
|
Cache |
32Mbits |
|
Backplane bandwidth |
52Gbit |
|
Filtering and forwarding rate |
10Mbps:14880pps |
|
100Mbps:148800pps |
|
|
1000Mbps:1488000pps |
|
|
Dimensions |
440x230x44mm(1U19-inch standard chassis) |
|
Use of the environment |
Operating Temperature: 0℃～40℃; |
|
Humidity 10% ~ 90% non-condensing |
|
|
Storage temperature: -20℃~70℃; |
|
|
Power |
Input :90-264VAC ,50-60HZ; output: 5V/12A |
|
Power consumption |
Power consumption: 60W |
Ordering Information
|
|
Description |
|
LNK-FS1610 |
10G + 16SFP Management Gigabit Fiber Switch: 16 1000M SFP Ports + 8 10/100/1000M RJ45 Port |
