Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: E-link
Chứng nhận: CE, FCC, RoHS，ISO9001
Số mô hình: Sê-ri LNK-ES105P
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1pcs
Giá bán: Negotiated
chi tiết đóng gói: Gói xuất tiêu chuẩn
Thời gian giao hàng: 5-12 ngày làm việc
Điều khoản thanh toán: T/T, PayPal
Khả năng cung cấp: 1000pcs/miệng
Kích thước: |
89 x 53 x 178 mm |
Cân nặng: |
450g |
Nhiệt độ hoạt động: |
-40 ~ 85 ℃ ( - 40 ~ 185 ° F) |
Nhiệt độ lưu trữ: |
-40 ~ 85 ℃ ( - 40 ~ 185 ° F) |
Bảo hành: |
5 năm |
Nhà ở: |
Nhôm, bảo vệ IP40 |
Kích thước: |
89 x 53 x 178 mm |
Cân nặng: |
450g |
Nhiệt độ hoạt động: |
-40 ~ 85 ℃ ( - 40 ~ 185 ° F) |
Nhiệt độ lưu trữ: |
-40 ~ 85 ℃ ( - 40 ~ 185 ° F) |
Bảo hành: |
5 năm |
Nhà ở: |
Nhôm, bảo vệ IP40 |
Industrial Ethernet Switches / Railway / EN50155 Advantage
· Supports 4 x 10/100 Base-T(X) with 802.3at P.S.E. PoE ports
· Support auto-negotiation and auto-MDI/MDI-X
· 4 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port
· Support store and forward transmission
· Support flow control
· Ultra-rugged enclosure M12 connector for toughest industrial usages
· Wall mounting enabled
Industrial Ethernet Switches / Railway / EN50155 Overview

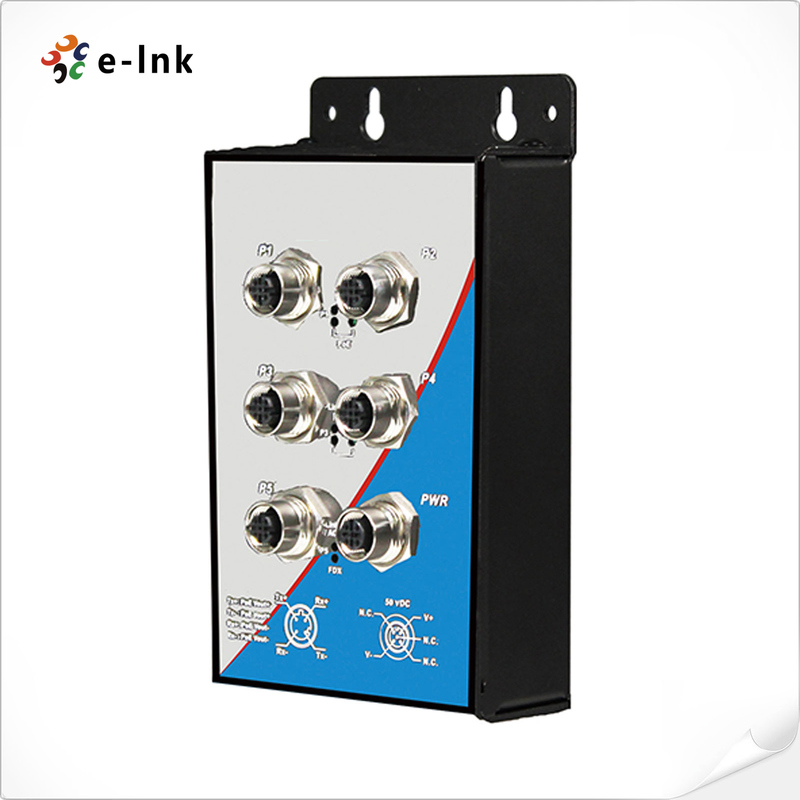

The LNK-ES105P series Ethernet switches are designed for industrial applications, such as
rolling stock, vehicle, and railway applications. It has 4x10/100BaseT(X) P.S.E. ports and
1x10/100/1000BaseT(X) port which is compliant with EN50155 requirement. It is specifically
designed for the toughest industrial environments. The LNK-ES105P series EN50155 Ethernet
switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation
against environmental disturbances, such as vibration and shock. It also support Power over
Ethernet (4 P.S.E. (Power Sourcing Equipment) port to provide power in a PoE setup), a system
to transmit electrical power up to 30 watts, along with data, to remote devices over standard
twisted-pair cable in an Ethernet network. The wide operating temperature range from -40 to 70°C
can satisfy most operating environment.
|
Interface |
RJ45 ports:10/100/1000 Base-T(X) Port in M12 D-coding Auto MDI/MDIX RJ45 ports:10/100 Base-T(X) with P.S.E. Ports in M12 D-coding Auto MDI/MDIX LED Indicators:PWR,L/A,SPD, PoE |
|
Switch Properties |
MAC Table size:8K Packet Buffer Size:1 Mbit Jumbo Frame Size:9.6 KB Processing Type:Store and Forward Flow Control: IEEE 802.3x flow control, back pressure flow control |
|
Power Requirement |
Input Voltage:48 VDC (46 ~ 50 V), redundant dual inputs Input Current:3 A @ 48 VDC Connection: M12 socket (A-coding), single power input Overload Current Protection:Present Reverse Polarity Protection:Present |
|
Physical Characteristics |
Housing: Aluminum , IP40 protection Dimension:89 x 53 x 178 mm (3.5 x 2.1 x 7 inch) Weight:450g Installation:Field-style mounting, DIN-Rail mounting (with optional kit) |
|
Environmental Limits |
Operating Temperature:-40 ~ 85 ℃ ( - 40 ~ 185 °F) Storage Temperature:-40 ~ 85 ℃ ( - 40 ~ 185 °F) Ambient Relative Humidity:5 ~ 95% (non-condensing) |
|
Standards |
E M I : FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) EMS: EN 61000-6-2 (Industrial), EN 61000-4-2 (ESD) Level 4, EN 61000-4-3 Level 3, EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 4, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN61000-4-9, EN61000-4-11,IEEE 1613 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 MTBF (mean time between failures):305,000 hrs EEE 802.3af / IEEE 802.3at for PoE IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseTX and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for Flow Control |
|
Warranty |
5 years |
Industrial Ethernet Switches / Railway / EN50155 Ordering Information
|
Model |
Description |
|
LNK-ES-105P |
4x10/100BaseT(X) P.S.E. ports + 1x10/100/1000BaseT(X) port |
|
Power Options |
► 120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
