Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: E-link
Chứng nhận: ISO9001, CE, ROHS, FCC
Số mô hình: LNK-1200MH (s)
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1pcs
Giá bán: US$65-US$69
chi tiết đóng gói: Bộ chuyển đổi PoE Bao bì carton tiêu chuẩn
Thời gian giao hàng: 1-3 ngày làm việc
Điều khoản thanh toán: T/T, Liên minh phương Tây, Moneygram, PayPal
Khả năng cung cấp: 1000/tháng
Tỷ lệ chuyển nhượng (PHY):: |
1200mbps |
Dải tần: |
2~68 MHz |
Kết nối mạng:: |
1X RJ45 10/100BASE-TX |
Đầu nối đường dây điện:: |
EU, Vương quốc Anh, AU và chúng tôi |
mã hóa: |
Mã hóa AES 128Bit với tính năng quản lý khóa |
kích thước: |
105 x 60 x 37 mm (LXWXH) |
Tỷ lệ chuyển nhượng (PHY):: |
1200mbps |
Dải tần: |
2~68 MHz |
Kết nối mạng:: |
1X RJ45 10/100BASE-TX |
Đầu nối đường dây điện:: |
EU, Vương quốc Anh, AU và chúng tôi |
mã hóa: |
Mã hóa AES 128Bit với tính năng quản lý khóa |
kích thước: |
105 x 60 x 37 mm (LXWXH) |

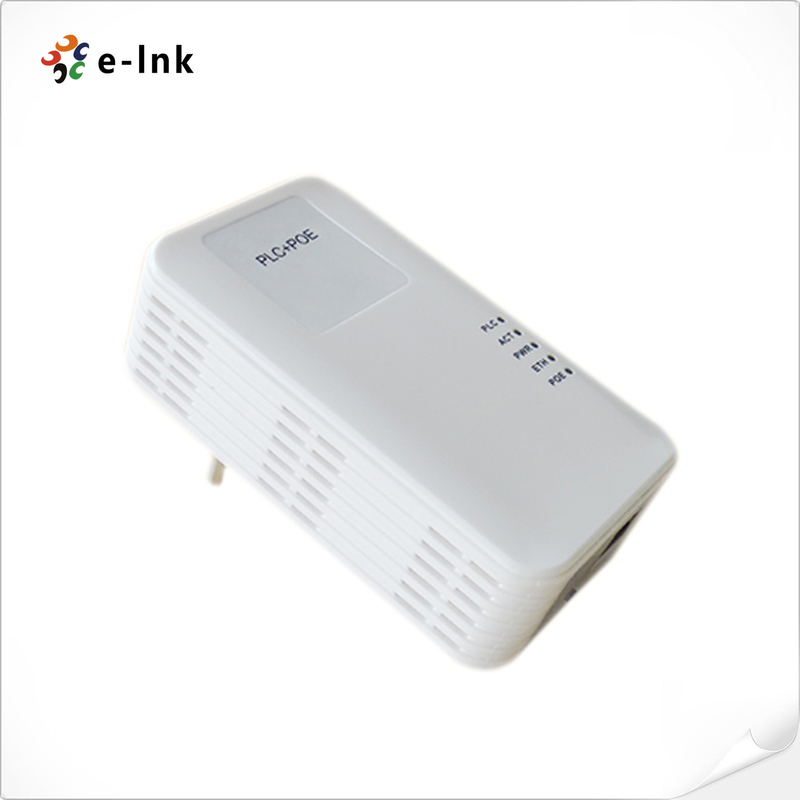

Model : LNK-1200MH-POE(S)
Product Description & Overview
The LNK-1200MH-POE(S) represents a cutting-edge powerline communication solution that transforms
existing electrical wiring into a high-speed network infrastructure. This innovative HomePlug AV2 adapter
delivers exceptional 1200Mbps data transmission rates while integrating a built-in Power over Ethernet
injector, providing comprehensive 55V/48V PoE power delivery through standard CAT5E/CAT6 cabling.
Utilizing advanced SmartLink Plus technology, the device establishes dual coupling across Line-Neutral
and Line-Ground pairs within AC power systems, significantly enhancing network coverage while eliminating
connectivity dead zones throughout residential and commercial environments.
Engineered with the Qualcomm Atheros QCA7500 chipset, this professional-grade powerline adapter
features enhanced processing capabilities and optimized analog front-end design for superior performance.
The solution maintains full compliance with IEEE 1901 standards and HomePlug AV/AV2 specifications,
ensuring seamless interoperability with existing powerline communication devices from multiple manufacturers.
Supporting IEEE 802.3at/af compliant Power Sourcing Equipment, this versatile adapter enables flexible
deployment of network devices in locations where traditional Ethernet connectivity proves impractical.
Ideal for smart home installations, IP surveillance systems, and office network expansions, this powerline
networking solution eliminates the need for additional wiring while providing reliable Gigabit-class data
transmission and PoE power delivery. The integrated quality of service (QoS) prioritization and advanced
noise filtering capabilities ensure stable performance even in electrically noisy environments, making it
particularly suitable for modern connected homes, small business networks, and IoT deployments
requiring both data connectivity and power supply through a single, streamlined installation.
Key Features Bullets
High-Speed Powerline Networking Technology
Delivers 1200Mbps data transmission through existing electrical wiring
Integrated PoE Power Delivery
Provides 55V DC power for PoE devices via CAT5e/CAT6 cables
Extended Network Coverage
Supports connectivity up to 500 meters using standard power outlets
Advanced Security Encryption
128-bit AES link encryption ensures secure powerline communications
Universal Compatibility Standards
Compliant with IEEE 802.3/802.3u, 802.3at/af and HomePlug AV/AV2
Professional PoE Support
IEEE 802.3at/af compliant Midspan or Endpoint PSE functionality
Plug-and-Play Installation
Simple setup requiring no additional wiring or configuration
High-Quality Video Streaming
Supports DVD-quality video transmission and real-time streaming
Flexible Device Connectivity
Enables convenient connection of multiple devices via any power outlet
Technical Specifications & Indexes
|
Parameter |
Specification |
|
Transfer rate (PHY): |
1200Mbps |
|
Range: |
up to 500m |
|
Frequency Band |
2~68 MHz |
|
Access-Method: |
OFDM |
|
Powerline Connector: |
EU, UK, AU and US |
|
Network Connector: |
1x RJ45 10/100Base-TX |
|
Encoding: |
128Bit AES-Encryption with key management |
|
LED-Displays: |
PLC (PLC signal light) |
|
ACT |
|
|
PWR (power light) |
|
|
ETH (Ethernet light) |
|
|
PoE (POE light) |
|
|
Power supply: |
100~240 VAC, 50/60 Hz |
|
Power over Ethernet: |
PoE function gets solved on the veins 4,5 (+) and 7,8(-), no data pairs, max. Output power 55VDC 30W/48VDC, 15.4W |
|
Power consumption: |
3.9 watts without PoE terminal, 35 watts maximum |
|
Supported Standards: |
IEEE 802.3 IEEE 802.3x IEEE 802.3u IEEE 802.3af IEEE 802.3at Auto MDI / X HomePlug AV2 |
|
Operating Systems: |
Windows® XP32bit, Windows® Vista 32/64bit, Windows® 7 32/64bit, Linux®, Mac OS® X and all TCP/IP Operating Systems |
|
Housing: |
Plastic housing |
|
Environment: |
Temperature in use: 0 ~ 70 °C |
|
Humidity in use: 10% ~ 85% (non condensing) |
|
|
Temperature storage: -20 ~ 70 °C |
|
|
Humidity storage: 5% ~ 90% (non condensing) |
|
|
Mark: |
CE |
|
Dimension: |
105 x 60 x 37 mm (LxWxH) |
|
Weight: |
180 grams (only adapter) |
|
500 grams (incl. accessories and packaging) |
|
|
Package contents: |
1x PoE Powerline Adapter |
|
1x RJ45 patch cable 1.5m |
|
|
1x CD-ROM with manual & software |
Application Scenarios
Extending network connectivity in multi-story building environments
Supporting IP camera installations without additional wiring requirements
Enabling quick network deployment in rental properties and offices
Providing reliable connectivity for smart home IoT devices
Supporting temporary network setups for events and exhibitions
