Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: E-link
Chứng nhận: ROHS,FCC,CE
Số mô hình: LNK-IMC016G
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1 CÁI
Giá bán: 49USD~59USD
chi tiết đóng gói: Chuyển đổi gói xuất tiêu chuẩn
Thời gian giao hàng: 3-12 ngày làm việc
Điều khoản thanh toán: L/C,T/T,Western Union,MoneyGram,Paypal
Khả năng cung cấp: 1000 PC/tháng
Từ khóa: |
Chuyển đổi Ethernet công nghiệp |
Nhiệt độ: |
-40 đến +80°C (-40 đến 176°F ) |
Vỏ bọc: |
vỏ nhôm |
W × H × d: |
150 x 115 x 50 mm |
Cân nặng: |
0,6kg |
Cài đặt: |
Gắn din-rail, gắn tường |
Từ khóa: |
Chuyển đổi Ethernet công nghiệp |
Nhiệt độ: |
-40 đến +80°C (-40 đến 176°F ) |
Vỏ bọc: |
vỏ nhôm |
W × H × d: |
150 x 115 x 50 mm |
Cân nặng: |
0,6kg |
Cài đặt: |
Gắn din-rail, gắn tường |

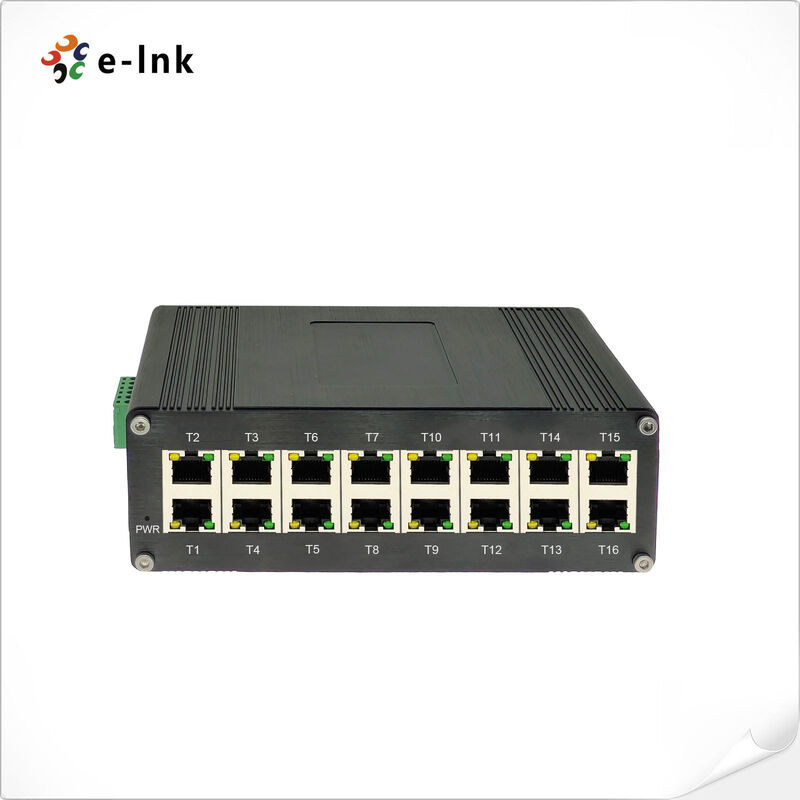

Industrial 16-port 10/100/1000BASE-T Ethernet Switch
Industrial 16-port 10/100/1000BASE-T Ethernet Switch Advantages
► 16 10/100/1000Base-TX ports
► RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail installation
► Redundant 12～48V DC Power Inputs
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial 16-port 10/100/1000BASE-T Ethernet Switch Overview
LNK-IMC016G is an 16 ports 10/100/1000Base-TX Hardened Ethernet Switch. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Industrial 16-port 10/100/1000BASE-T Ethernet Switch Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3z 1000BASE-X |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1M bits |
|
Switch Fabric: |
40 Gbps |
|
Max Packet Length: |
10K Bytes |
|
Address Table Size: |
16K MAC Addresses |
|
Interface |
|
|
Connector: |
16 x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48V DC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
5W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Industrial 16-port 10/100/1000BASE-T Ethernet Switch Ordering Information
