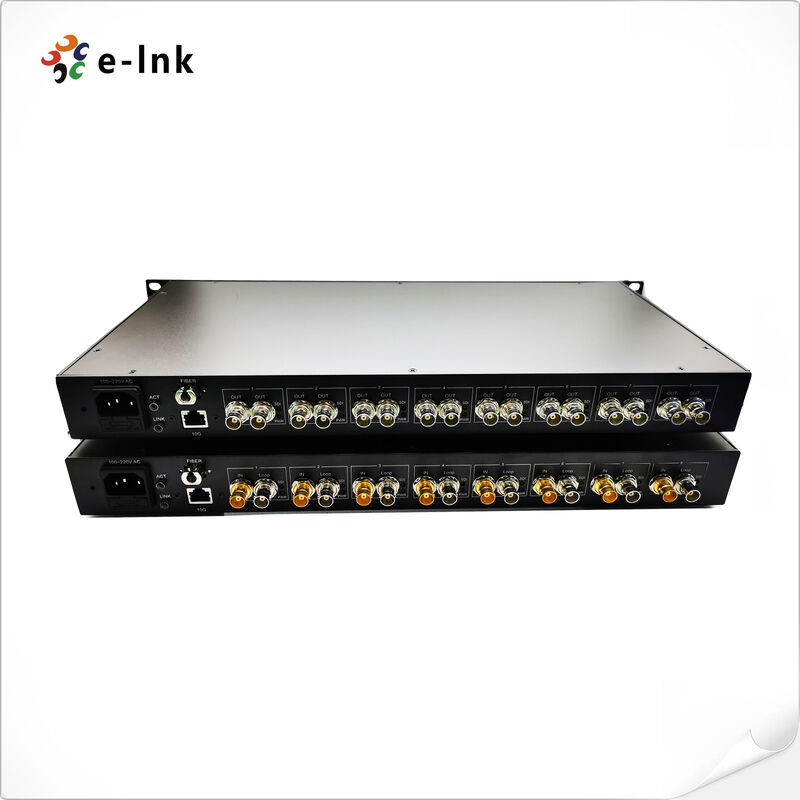

8 Channel 3G-SDI Fiber Extender with 10G Ethernet 20km Transmission

Model: LNK-3G8V10GE

 Product Description & Overview

The 8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender represents a high-performance hybrid

transmission solution for demanding broadcast and IP-based video applications. This advanced

fiber optic system integrates eight channels of 3G-SDI high-definition video with a 10G Ethernet

IP channel through single-mode optical fiber infrastructure. The extender delivers exceptional

optical performance with real-time HD video processing capabilities, maintaining broadcast-quality

standards while providing robust network connectivity for modern IP-based systems.

Engineered for superior signal integrity, this hybrid extender utilizes advanced fiber optic technology

to ensure complete immunity to electromagnetic interference, ground loops, and RF noise. The 10G

Ethernet interface provides substantial bandwidth for IP video streaming, device control, and data

communication, significantly enhancing system scalability and compatibility with contemporary

network infrastructure. This combination of SDI and Ethernet technologies creates a future-proof

solution that bridges traditional broadcast equipment with modern IP networks.

The system supports flexible transmission distances up to 20 kilometers, with optional configurations

extending to 40km, 60km, and 80km ranges to accommodate various installation requirements. This

extended reach capability makes the solution ideal for large-scale deployments including campus-wide

surveillance systems, sports venue broadcasting, and distributed production facilities. The fiber optic

transmission ensures signal security and reliability far beyond conventional coaxial cable systems,

eliminating signal degradation and interference issues common in copper-based installations.

This high-capacity extender finds optimal application in broadcast centers, live event production, high-

definition surveillance networks, and large-scale AV distribution systems where simultaneous transmission

of multiple video feeds and high-speed data is essential. By consolidating multiple signal types through

single fiber connections, the system significantly reduces infrastructure complexity while providing superior

performance and reliability, establishing new benchmarks for hybrid video and data transmission in

professional applications.

Key Features Bullets

• High-Density Signal Integration
  Transmits 8 channels of 3G-SDI/ASI video with embedded audio and 10G Ethernet over single fiber

• Multi-Standard Video Compatibility
  Supports HD-SDI, SD-SDI, and DVB-ASI formats with bandwidth from 19.4Mb/s to 2.97Gb/s

• Precision Clock Recovery System
  SMPTE 424M (2.97Gb/s) compliant clock recovery ensuring accurate signal synchronization

• Comprehensive Standards Support
  Compatible with SMPTE 424M, 292M, 259M, and 297M for 3G-SDI, HD-SDI, SD-SDI, and ASI applications

• Advanced Optical Multiplexing
  Built-in CWDM technology with individual SFP modules for each signal path

• Intelligent Signal Optimization
  Automatic cable equalization based on detected data rate for optimal signal integrity

• Real-Time System Monitoring
  LED status indicators providing continuous monitoring of critical operational parameters

• High-Speed Network Integration
  10G Ethernet channel supporting high-bandwidth IP video and data transmission

• Extended Transmission Capability
  Supports distances up to 20km with optional 40/60/80km configurations available

• Professional Broadcast Applications
  Ideal for live broadcasting, HD surveillance, and professional video production environments
