4 Channel 3G-SDI Fiber Converter with RS485 Tally 20km Broadcast
Model: LNK-3GSDI-4V1DT Series
Product Description & Overview

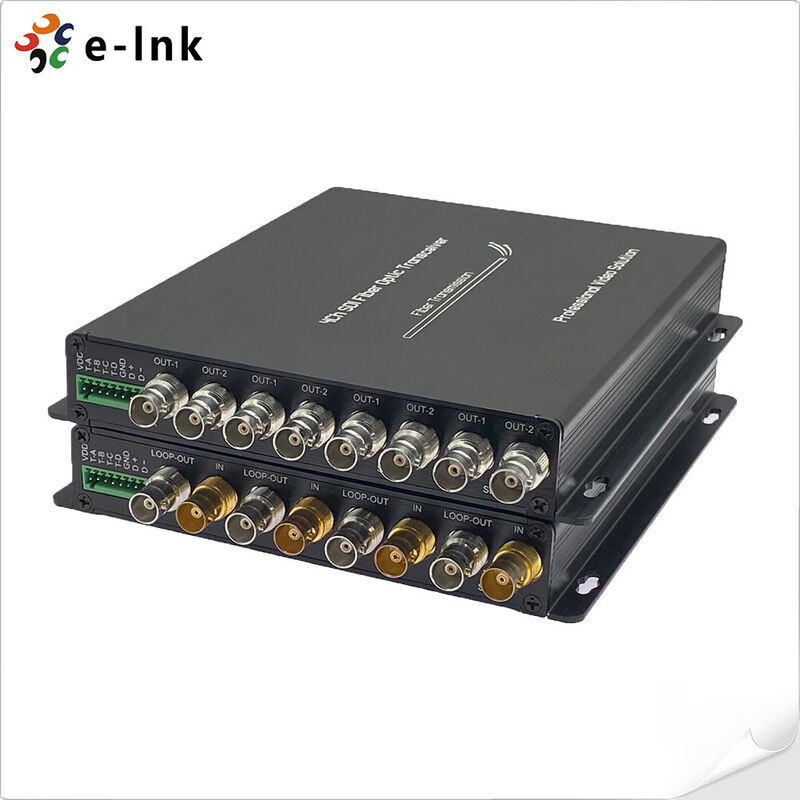

The 4-Channel 3G-SDI Fiber Converter with RS485 & Tally delivers a high-density, integrated solution
for professional broadcast signal transmission. This advanced system consolidates four independent
channels of 3G-SDI high-definition video, four tally signaling channels, and a bi-directional RS485 data
path onto a single optical fiber. The matched transmitter and receiver pair is engineered to maintain
pristine 1080p video quality using non-compressed, broadcast-level transmission technology, ensuring
zero generation loss for the most demanding production environments.
Utilizing sophisticated fiber optic multiplexing technology, this converter significantly simplifies infrastructure
by reducing cable complexity while providing each video channel with a dedicated loop-through output for
local monitoring. The integrated RS485 interface enables reliable remote control of cameras, robotic
systems, and other studio equipment, while the multi-channel tally system ensures clear visual communication
between the control room and camera operators. This comprehensive signal integration makes the system
ideal for live broadcasts, sports production, and studio applications where space, reliability, and signal clarity
are paramount.
Designed specifically for the broadcast industry, this robust converter is widely used in outside broadcast
(OB) vehicles, production control rooms, and studio-to-transmitter links. Its ability to handle multiple video
feeds alongside critical control and communication signals over a single fiber makes it a cornerstone for
modern, efficient broadcast facilities. By providing immunity to electromagnetic interference and signal
degradation, this solution offers broadcasters a reliable and future-proof method for expanding their
production capabilities while maintaining the highest standards of video quality and operational control.
Key Features Bullets
Multi-Channel HD Video Transport
Transmits 4 independent channels of 3G/HD-SDI video over a single optical fiber.
Intelligent Signal Integrity Assurance
Automatic cable equalization maintains optimal signal quality across all connected links.
Precision Multi-Rate Signal Recovery
Automatic reclocking for data rates from 270 Mbps to 3 Gbps ensures stable signal regeneration.
Professional Production Integration
Direct compatibility with 3G/HD-SDI cameras and includes 4-channel loop-through output for monitoring.
Flexible Transmission Distance
Supports transmission up to 20 km, with optional distances available to suit various application needs.
Multi-Channel Tally System
Integrated 4-channel tally signaling for clear visual communication in live production environments.
Broadcast-Grade Video Quality
Full digital non-compression technology delivers studio-level, lossless video transmission.
Comprehensive Control & Communication
Supports 1-channel backward RS485 for device control alongside 4-channel tally functionality.
Stable Environmental Performance
Reliable operation within a working temperature range of -10℃ to +55℃.
Technical Specifications & Indexes
|
SDI Input |
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom |
|
270Mbit/s - 1.48Gbit/s – 3Gbit/s |
|
|
Input number: 4 |
|
|
Reflection loss: >15DB |
|
|
Equilibrium: 0-150m @3Gb/s |
|
|
Connector: BNC |
|
|
Optics |
Channel: 1 |
|
Type: single-mode |
|
|
Transmission distance: 20km (Other distance Optional) |
|
|
Reflection loss: > 15dB |
|
|
Dithering: < 0.2UI |
|
|
Connector: FC/UPC (SC, LC, ST optional) |
|
|
SDI Output |
Output number:4 |
|
Signal level: 800mV nominal |
|
|
Rise/fall time: 200ps indication |
|
|
Overshoot: < 10% amplitude |
|
|
Reflection loss: >15dB |
|
|
Dithering: < 0.2UI |
|
|
Connector: 75Ω BNC |
|
|
Data |
1Ch RS-485 (full/half duplex) and support NRZ, RZI and Manchester |
|
Max. 57600bps for RS485 |
|
|
Connector: Industrial standard screw terminal |
|
|
4Ch Tally: A, B , C, D |
|
|
Power and environmental indication |
Operating temperature: -10℃～＋55℃ |
|
Power Input: 1A@12VDC |
|
|
EMI/RFI: meet FCC Part 15 Class A, EU EMC standard |
|
|
Average time trouble-free: >100000 hours |
|
|
SDI video format supports |
625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94; |
Ordering Information
|
LNK-HDSDI-4V1D4T |
4-Ch HD-SDI Video with Loop output + 1Ch backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-3GSDI-4V1D4T |
4-Ch 3G-SDI Video with Loop output + backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs |
Application Scenarios
Multi-camera live studio broadcast production systems
Outside broadcast van and mobile production unit setups
Sports event multi-feed video transmission and control
Professional television studio camera and tally networks
Remote production with integrated camera control systems
